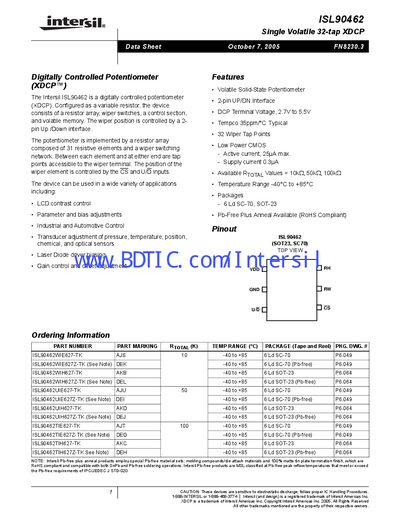

The ISL90462 is a digitally controlled potentiometer (XDCP) configured as a variable resistor. The device consists of a resistor array, wiper switches, a control section, and volatile memory. The wiper position is controlled by a 2-pin Up/Down interface. The potentiometer is implemented by a resistor array composed of 31 resistive elements and a wiper switching network. Between each element and at either end are tap points accessible to the wiper terminal. The position of the wiper element is controlled by the CS and U/D inputs. The device can be used in a wide variety of applications including LCD contrast control, parameter and bias adjustments, industrial and automotive control, transducer adjustment of pressure, temperature, position, chemical, and optical sensors, laser diode driver biasing, gain control, and offset adjustment.
The ISL90462 is a digitally controlled potentiometer (XDCP) that provides 32 wiper tap points and can be configured as a variable resistor. It uses a 2‑pin Up/Down interface (UP/DOWN and CS) for wiper control and includes volatile memory to store the current position.
The device is offered in SC‑70 and SOT‑23 packages, supports supply voltages from 2.7 V to 5.5 V, and operates over a temperature range of –40 °C to +85 °C. It features low active current (25 µA max) and ultra‑low standby current (0.3 µA).
| Wiper tap points | 32 |
|---|---|
| Supply voltage range | 2.7 V to 5.5 V |
| Active current (max) | 25 µA |
| Standby supply current | 0.3 µA |
| Available total resistance values | 10 kΩ, 50 kΩ, 100 kΩ |
| Operating temperature range | -40 °C to +85 °C |
| Storage temperature range | -65 °C to +150 °C |
| Package types | SC‑70, SOT‑23 |
| Resolution | 32 taps |
| Noise (1 kHz) | -120 dBV |
The wiper is controlled by a 2‑pin Up/Down interface (UP/DOWN and CS inputs).
The array consists of 31 resistive elements.
The standby supply current is 0.3 µA.
The device can be stored from –65 °C up to +150 °C.
