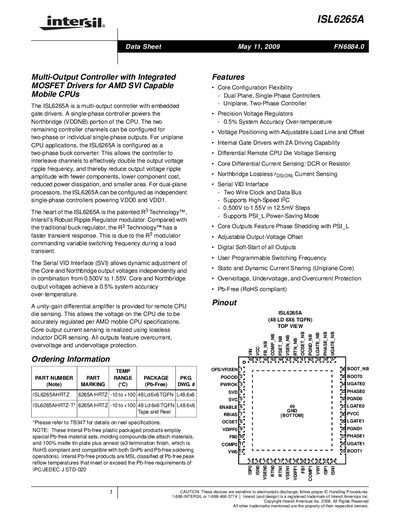

The ISL6265A is a multi-output controller with integrated MOSFET drivers for AMD SVI capable mobile CPUs. It features a single-phase controller for the Northbridge portion of the CPU and two additional channels that can be configured for two-phase or individual single-phase outputs. The ISL6265A can be used for both uniplane and dual-plane processors. It utilizes Intersil's R3 Technology™ for faster transient response.
The ISL6265A is a multi‑output controller with embedded MOSFET gate drivers designed for AMD mobile CPUs. It can operate as a single‑phase controller for the Northbridge (VDDNB) and as dual‑phase or independent single‑phase controllers for other CPU planes.
The device features Intersil’s patented R3 Technology™ ripple regulator, a serial VID interface (SVI) for fine voltage adjustment, differential remote‑CPU die sensing, and built‑in over‑voltage, under‑voltage and over‑current protection.
| Output Voltage Range (SVI) | 0.500 V to 1.55 V (12.5 mV steps) |
|---|---|
| Core Switching Frequency | 200 kHz – 500 kHz (typical 285‑315 kHz) |
| System Accuracy | 0.5 % over‑temperature |
| Gate‑Driver Current Capability | 2 A |
| Package | 48‑lead 6 × 6 mm TQFN |
The SVI can be programmed from 0.500 V to 1.55 V in 12.5 mV steps.
Typical core switching frequency is 285 kHz to 315 kHz, with an adjustable range of 200 kHz to 500 kHz.
The device includes over‑voltage, under‑voltage, and over‑current protection on all outputs.
It is supplied in a 48‑lead 6 × 6 mm thin‑quad flat no‑lead (TQFN) package.
