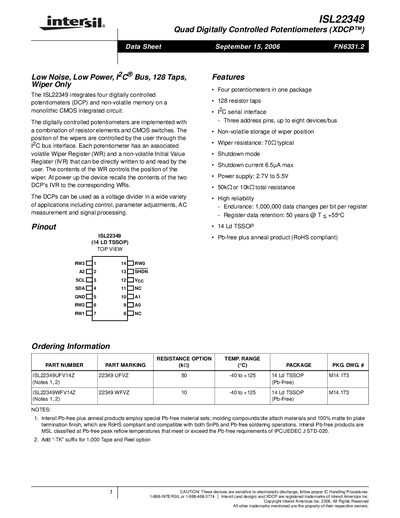

Intersil ISL22349 Datasheet
The ISL22349 integrates four digitally controlled potentiometers (DCP) with non‑volatile memory on a monolithic CMOS IC. Each potentiometer offers 128 resistor taps and can be used as a voltage divider for control, parameter adjustment, AC measurement, and signal processing.
Key features include a 2.7 V‑5.5 V supply range, low shutdown current (6.5 µA max), 10 kΩ or 50 kΩ total resistance options, and a 14‑lead TSSOP package. The device supports an I²C‑compatible serial interface with up to eight devices on the bus and provides both volatile and non‑volatile registers for wiper position storage.
Intersil ISL22349 specifications
| Number of potentiometers | Four |
|---|---|
| Resistor taps per potentiometer | 128 |
| Supply voltage range | 2.7 V to 5.5 V |
| Shutdown current (max) | 6.5 µA |
| Endurance (data changes per bit) | 1,000,000 cycles |
| Data retention (temperature < +55 °C) | 50 years |
| Wiper resistance (typical) | 70 Ω |
| Package type | 14‑lead TSSOP |
| Operating temperature range | -40 °C to +125 °C |
Source: Intersil ISL22349 Datasheet
All Intersil ISL22349 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the ISL22349?
The device operates from 2.7 V up to 5.5 V.
How many resistor taps does each potentiometer have?
Each digitally controlled potentiometer provides 128 taps.
