The FDD390N15ALZ is a N-channel MOSFET produced by Fairchild Semiconductor. It has a maximum rated voltage of 150V and a maximum continuous current of 26A. It has a fast switching speed, low gate charge, high performance, low RDS(on), high power and current handling capability.

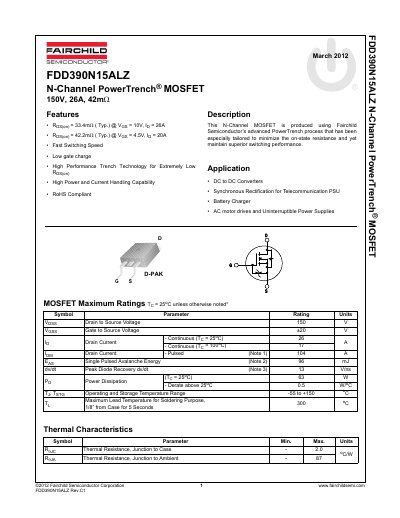

This document is a technical datasheet for the Fairchild Semiconductor FDD390N15ALZ, an N-Channel PowerTrench MOSFET. The device features a rated drain-to-source voltage of 150V and a continuous drain current of 26A at Tc = 25°C. It is designed with advanced PowerTrench technology to minimize on-state resistance while maintaining superior switching performance.
| Drain to Source Voltage (Vdss) | 150 V |
|---|---|
| Power Dissipation (Tc = 25°C) | 83 W |
| Operating and Storage Temperature Range | -55 to +150 °C |
| Package Type | D-PAK |
