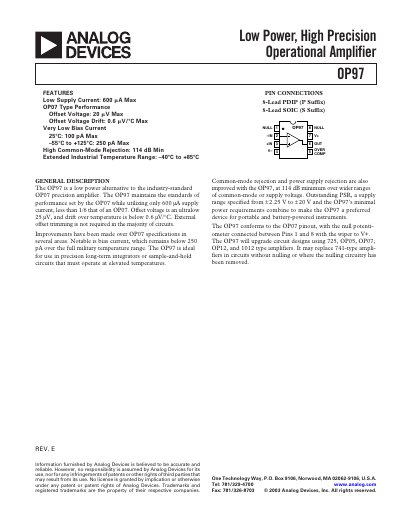

Analog Devices OP97 Low Power High Precision Operational Amplifier Datasheet
The OP97 operational amplifier from Analog Devices offers a low‑power alternative to the industry‑standard OP07, consuming only 600 µA supply current while maintaining high precision. It features an ultralow offset voltage of 25 µV, low bias current (typical 100 pA), and excellent common‑mode and power‑supply rejection.
The device is supplied in 8‑lead PDIP and SOIC packages, operates over an industrial temperature range of –40 °C to +85 °C, and is compatible with standard OP07 pinouts. Detailed specifications, absolute maximum ratings, and application information are provided for designers of precision analog circuits.
Analog Devices OP97 specifications
| Supply Current (ISY) – Typical | 600 µA |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
| Package Options | 8‑Lead PDIP (P‑suffix) and 8‑Lead SOIC (S‑suffix) |
All Analog Devices OP97 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What temperature range can the OP97 operate in?
It operates from –40 °C to +85 °C.
Which package types are offered for the OP97?
The OP97 is available in an 8‑lead PDIP (P‑suffix) and an 8‑lead SOIC (S‑suffix).
What temperature range does the OP97 operate in?
The OP97 is rated for an extended industrial temperature range of –40 °C to +85 °C.
Is the OP97 pinout compatible with the OP07?
Yes, the OP97 conforms to the OP07 pinout.
