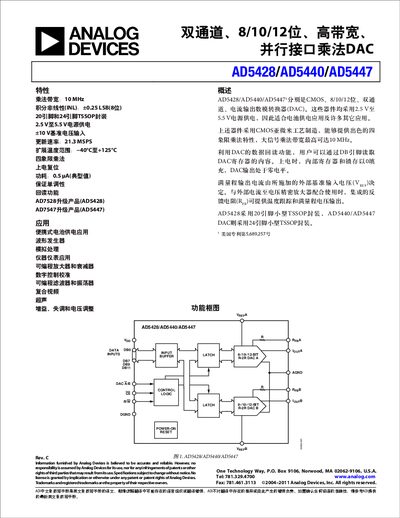

Analog Devices AD5428/AD5440/AD5447 Digital-to-Analog Converter Datasheet
The AD5428, AD5440 and AD5447 are CMOS, dual‑channel, current‑output digital‑to‑analog converters offered by Analog Devices. They operate from a single 2.5 V to 5.5 V supply and support battery‑powered and many other applications.
This document provides the technical specifications, timing characteristics, absolute maximum ratings, pin configurations, typical performance data, and evaluation‑board information for the three devices, along with ordering details and revision history.
Analog Devices AD5428/AD5440/AD5447 specifications
| Supply Voltage Range | 2.5 V to 5.5 V |
|---|---|
| Update Rate | 21.3 MSPS |
| Multiplication Bandwidth | 10 MHz |
| Power‑on Reset Current | 0.5 µA (typical) |
Source: Analog Devices AD5428/AD5440/AD5447 Digital-to-Analog Converter Datasheet
All Analog Devices AD5428/AD5440/AD5447 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range do the AD5428/AD5440/AD5447 support?
All three devices operate from a single supply voltage of 2.5 V to 5.5 V.
From: Analog Devices AD5428/AD5440/AD5447 Digital-to-Analog Converter Datasheet
What is the maximum update rate of these DACs?
The devices can update at up to 21.3 MSPS.
From: Analog Devices AD5428/AD5440/AD5447 Digital-to-Analog Converter Datasheet
