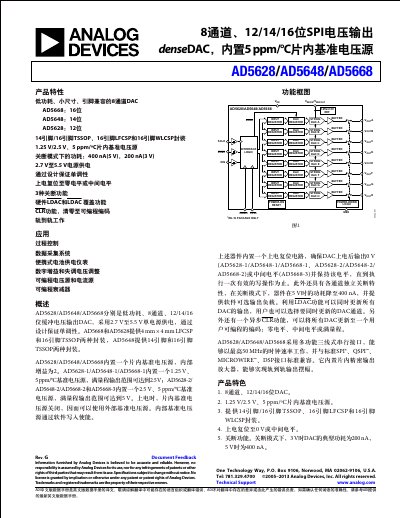

Analog Devices AD5628/AD5648/AD5668 Digital-to-Analog Converter Datasheet
The AD5628, AD5648 and AD5668 are low‑power, 8‑channel DACs offering 12‑, 14‑ and 16‑bit resolution respectively. They operate from a single 2.7 V to 5.5 V supply, provide an internal 1.25 V or 2.5 V reference with 5 ppm/°C temperature coefficient, and support up to 50 MHz serial clock rates. Features include power‑down mode, LDAC update, and asynchronous CLR functions.
Typical applications include process control, data‑acquisition systems, portable battery‑powered instruments, programmable voltage/current sources, and programmable attenuators. The devices are offered in 14‑pin/16‑pin TSSOP, 16‑pin LFCSP and 16‑pin WLCSP packages.
Analog Devices AD5628/AD5648/AD5668 specifications
| Supply Voltage (VDD) | 2.7 V to 5.5 V |
|---|---|
| Power‑down Current | 400 nA at 5 V, 200 nA at 3 V |
| Output Voltage Range | 0 V to VDD (rail‑to‑rail) |
| Operating Temperature Range | -40 °C to +105 °C (industrial) |
| Maximum Serial Clock Frequency | 50 MHz |
Source: Analog Devices AD5628/AD5648/AD5668 Digital-to-Analog Converter Datasheet
All Analog Devices AD5628/AD5648/AD5668 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the AD5628/AD5648/AD5668 support?
The devices operate from 2.7 V up to 5.5 V supply voltage.
From: Analog Devices AD5628/AD5648/AD5668 Digital-to-Analog Converter Datasheet
How many channels are available in the AD5668?
The AD5668 provides eight independent output channels.
From: Analog Devices AD5628/AD5648/AD5668 Digital-to-Analog Converter Datasheet
