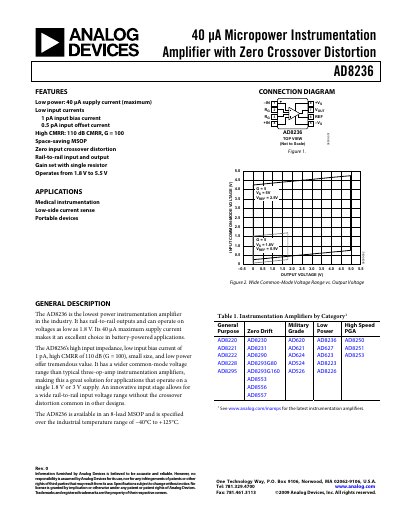

Analog Devices AD8236 Micropower Instrumentation Amplifier Datasheet
The AD8236 is a micropower instrumentation amplifier designed for battery‑powered applications such as medical instrumentation, low‑side current sensing, and portable devices. It operates from 1.8 V to 5.5 V and draws a maximum of 40 µA supply current.
The device offers rail‑to‑rail input and output, a typical input bias current of 1 pA, a CMRR of up to 110 dB at a gain of 100, and an 8‑lead MSOP package suitable for space‑constrained designs.
Analog Devices AD8236 specifications
| Supply Current (Quiescent) | 30–40 µA |
|---|---|
| Operating Supply Voltage Range | 1.8 V to 5.5 V |
| Input Bias Current | 1 pA typical, 10 pA max |
| Output Short‑Circuit Current | 55 mA |
| Temperature Range (Specified Performance) | -40 °C to +125 °C |
Source: Analog Devices AD8236 Micropower Instrumentation Amplifier Datasheet
All Analog Devices AD8236 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply current of the AD8236?
The AD8236 draws a maximum of 40 µA supply current.
From: Analog Devices AD8236 Micropower Instrumentation Amplifier Datasheet
What is the typical input bias current of the AD8236?
The typical input bias current is 1 pA, with a maximum of 10 pA.
From: Analog Devices AD8236 Micropower Instrumentation Amplifier Datasheet
