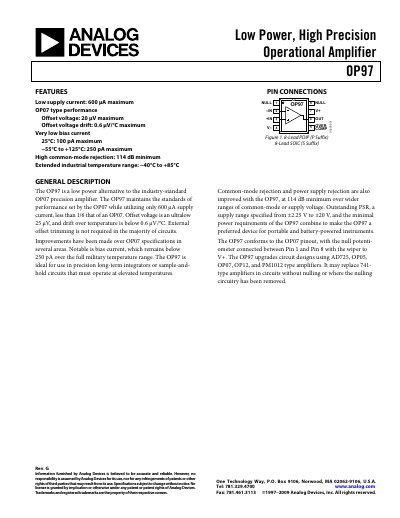

The OP97 is a low power alternative to the industry-standard OP07 precision amplifier. The OP97 maintains the standards of performance set by the OP07 while utilizing only 600 μA supply current, less than 1/6 that of an OP07. Offset voltage is an ultralow 25 μV, and drift over temperature is below 0.6 μV/°C.
The OP97 is a low‑power, high‑precision operational amplifier that offers ultra‑low offset voltage (typical 25 µV), very low bias current (typical 100 pA) and high common‑mode rejection (≥114 dB). It operates from ±2 V to ±20 V supply voltage and is suited for portable, battery‑powered instruments and precision integrators.
The document contains sections on features, pin connections, general description, detailed specifications, electrical characteristics, absolute maximum ratings, thermal resistance, ESD caution, typical performance curves, application information, AC performance, guarding and shielding, outline dimensions and ordering guide for the available PDIP and SOIC packages.
| Supply Current (ISY) – Typical | 600 µA |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
| Package Options | 8‑Lead PDIP (P‑suffix) and 8‑Lead SOIC (S‑suffix) |
It operates from –40 °C to +85 °C.
The OP97 is available in an 8‑lead PDIP (P‑suffix) and an 8‑lead SOIC (S‑suffix).
