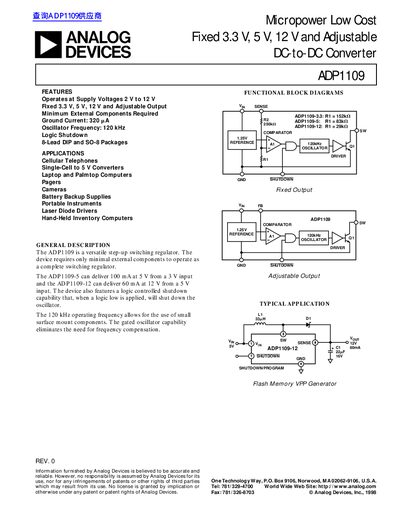

The ADP1109 is a versatile step-up switching regulator. The device requires only minimal external components to operate, with a wide input voltage range of 2V to 12V, and the output options include fixed 3.3V, 5V, and 12V, as well as an adjustable output.
The ADP1109 is a versatile step-up switching regulator designed for applications requiring minimal external components. It operates with supply voltages ranging from 2 V to 12 V and offers fixed output options of 3.3 V, 5 V, or 12 V, as well as an adjustable version.
| Supply Voltage Range | 2 V to 12 V |
|---|---|
| Output Voltage Options | 3.3 V, 5 V, 12 V or Adjustable |
| Quiescent Current (Switch Off) | 450 pA typical |
| Oscillator Frequency | 120 kHz typical |
| Operating Temperature Range | 0°C to +70°C |
The quiescent current is typically 450 pA.
The device offers fixed versions for 3.3 V, 5 V, and 12 V.
The typical oscillator frequency is 120 kHz.
