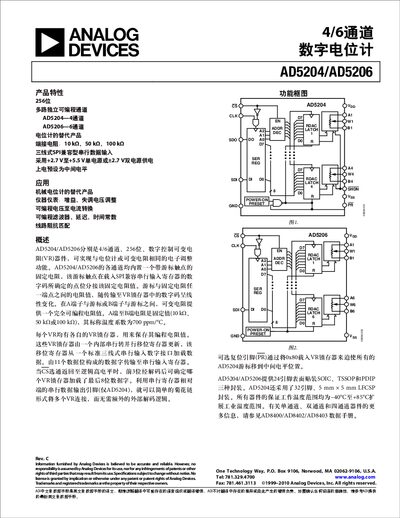

Analog Devices AD5204/AD5206 Digital Potentiometer Datasheet

Datasheet 20 pages · 488 KB · EN

The AD5204 and AD5206 are 4‑channel and 6‑channel, 256‑position digital potentiometers that provide SPI‑compatible serial programming. Each channel contains a fixed resistor with a cursor tap that can be positioned linearly via an 8‑bit digital code.

The devices operate from a single 2.7 V to 5.5 V supply or a ±2.7 V dual supply, support a wide temperature range, and are offered in several 24‑lead surface‑mount packages (SOIC, TSSOP, PDIP) and a 32‑lead LFCSP for the AD5204.

Read online

Analog Devices AD5204/AD5206 specifications

Number of channels	AD5204 – 4 channels; AD5206 – 6 channels
Supply voltage range	2.7 V to 5.5 V single‑supply or ±2.7 V dual‑supply
Operating temperature range	-40 °C to +85 °C
Package options	24‑lead PDIP, SOIC, TSSOP and 32‑lead LFCSP
Cursor resistance tolerance	±1.5 %
Pulse drive current	±20 mA
