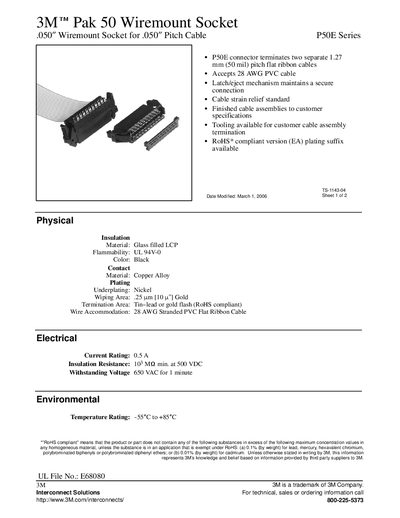

3M P50E Wiremount Socket Manual
Datasheet 3 pages · 173 KB · EN
This document describes the 3M Pak 50 Wiremount Socket (P50E Series) for .050" pitch cable applications. It includes physical, electrical, and environmental characteristics, as well as detailed dimensions and contact information.
Additional sections cover ordering details, tooling options, and RoHS compliance, along with a legal notice and warranty information for the product.
3M P50E specifications
| Insulation Material | Glass filled LCP |
|---|---|
| Flammability | UL 94V-0 |
| Contact Material | Copper Alloy |
| Underplating | Nickel |
| Current Rating | 0.5 A |
| Insulation Resistance | 10 MΩ min. at 500 VDC |
| Temperature Rating | -55°C to +85°C |
| Withstanding Voltage | 650 VAC for 1 minute |
| RoHS Compliance | RoHS* compliant version available |
Source: 3M P50E Wiremount Socket Manual
All 3M P50E documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Product Leaflet 1
Questions answered in these manuals
What is the current rating of the P50E Wiremount Socket?
The socket is rated for a current of 0.5 A.
Is the P50E Wiremount Socket RoHS compliant?
Yes, a RoHS‑compliant version is available.
What is the current rating of the P50E Pak 50 Boardmount Plug?
The plug is rated for 0.5 A.
Is the Pak 50 Boardmount Plug RoHS compliant?
Yes, the product is RoHS compliant.
