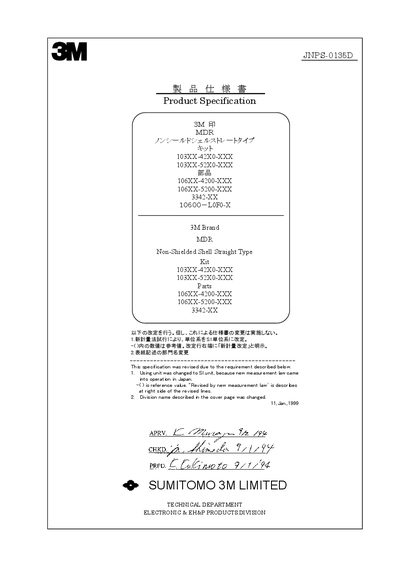

3M JNPS-0135D Connector Handbook
Product Leaflet 8 pages · 355 KB · EN
This handbook describes the MDR non‑shielded shell kit system identified by the model JNPS‑0135D. It lists compatible plug and receptacle connectors, cable sizes, panel thickness limits, and options for colors, logos, and key types.
Technical data such as applied temperature range, physical characteristics, and quality performance tests are included, along with packaging, storage, and related drawing references for manufacturing and installation.
3M JNPS-0135D specifications
| Recommended tightening torque (L30 type) | 0.196+0.049 N·m (2.0+0.5 kgf·cm) |
|---|---|
| Recommended tightening torque (L26 type) | 0.196+0.049 N·m (2.0+0.5 kgf·cm) |
| Cable outer diameter (14P) | 7.0 mm min @80mm max |
| Maximum panel thickness | ≤2.0 mm (including washer) |
| Latch retention force (Y direction) | 8.4 N |
