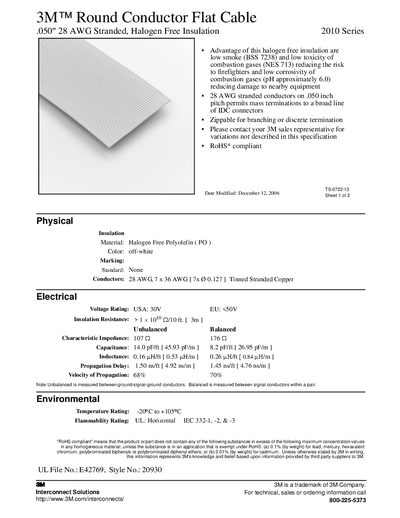

3M™ Round Conductor Flat Cable .050″ 28 AWG Stranded, Halogen Free Insulation 2010 Series physical and electrical characteristics
The 3M 2010 Series Round Conductor Flat Cable features a halogen‑free polyolefin insulation that offers low smoke, low toxicity, and low corrosivity in case of fire. The .050" pitch and 28 AWG stranded conductors allow mass termination to a wide range of IDC connectors and can be zippable for branching or discrete termination.
The sheet lists detailed electrical and physical characteristics, environmental ratings, and ordering options, including custom roll lengths and conductor counts. Warranty and liability statements are also included.
| Insulation Material | Halogen Free Polyolefin (PO) |
|---|---|
| Color | off‑white |
| Conductors | 28 AWG 7 × 36 AWG Tinned Stranded Copper |
| Voltage Rating | USA 30 V, EU < 50 V |
| Insulation Resistance | > 1 × 10¹² Ω·ft (3 m) |
| Characteristic Impedance | 107 Ω (unbalanced), 176 Ω (balanced) |
| Capacitance | 14.0 pF/ft (45.93 pF/m) |
| Inductance | 0.16 µH/ft (0.53 µH/m) |
| Propagation Delay | 1.50 ns/ft (4.92 ns/m) |
| Velocity of Propagation | 68 % |
| RoHS Compliance | Yes |
Yes, the cable is RoHS compliant.
The cable is rated for 30 V in the USA and less than 50 V in the EU.
Contact a 3M sales representative for custom roll lengths and additional conductor counts.
