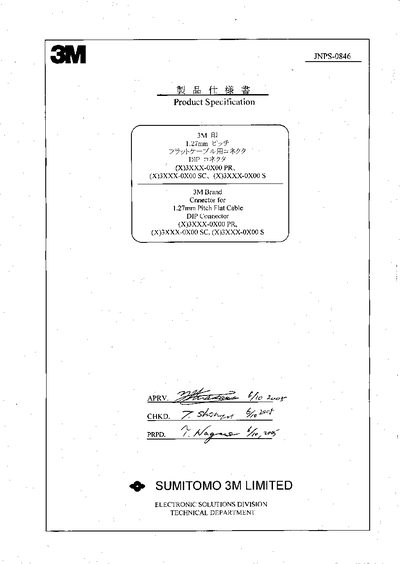

3M JNPS-0846 Connector Handbook
The JNPS-0846 is an IDC (Insulation Displacement Connector) designed for 1.27 mm pitch flat cables. It features two rows of U‑elements on the top side and two rows of contact tails on the bottom, enabling electrical connection between cable, PCB, or compatible IC sockets.
The handbook details electrical ratings (10 A, 250 V AC / 300 V DC), temperature range (‑55 °C to 105 °C), plating options (PR, SC, S), contact quantities (14‑40 pins), storage conditions, and recommended mounting practices such as using spacers thicker than 0.4 mm when soldered to a board.
3M JNPS-0846 specifications
| Current rating | 10 A max |
|---|---|
| Voltage rating | AC 250 V max / DC 300 V max |
| Operating temperature | -55 °C to 105 °C |
| Contact quantity | 14‑40 pins (various series) |
| Plating suffix – PR | Gold flash plating on U‑element and tail |
| Storage temperature | 5 °C to 35 °C |
| Storage humidity | 40 % to 70 % RH |
| Recommended spacer thickness for soldered mounting | > 0.4 mm |
Source: 3M JNPS-0846 Connector Handbook
All 3M JNPS-0846 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum current rating of the JNPS-0846 connector?
The connector is rated for up to 10 A maximum current.
What are the recommended storage conditions for this connector?
Store it at ambient temperature between 5 °C and 35 °C and humidity between 40 % and 70 % RH.
What is the maximum current rating of the JNPS-0846 connector?
The connector is rated for a maximum current of 10 A.
What voltage ratings does the JNPS-0846 connector support?
It supports up to 250 V AC and 300 V DC.
