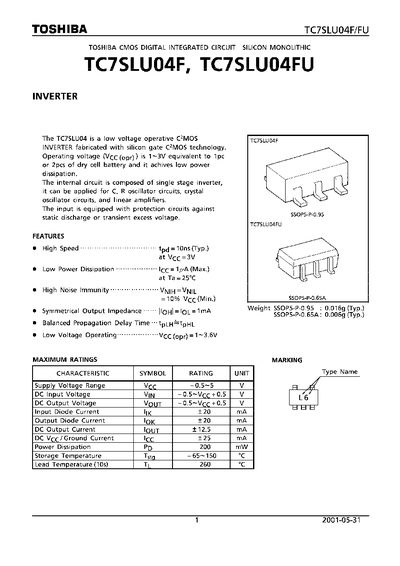

The TC7SLU04F/FU is a low‑voltage CMOS inverter fabricated with silicon‑gate C7MOS technology. It operates from a 1 V to 3.6 V supply and is suitable for C‑type, RC, crystal oscillator circuits and linear amplifiers. Features include low power dissipation, high noise immunity, symmetrical output impedance and balanced propagation delay.
The datasheet provides maximum ratings, recommended operating conditions, DC and AC electrical characteristics, and package dimensions for two SSOP variants. It also outlines restrictions on product use, stating that the device is not intended for safety‑critical or high‑reliability applications such as medical, aerospace or traffic control equipment.
| Supply Voltage Range | 1 V ~ 3.6 V |
|---|---|
| Power Dissipation | 200 mW |
| Storage Temperature | -65 °C ~ 150 °C |
| Lead Temperature (10 s) | 260 °C |
| Weight (SSOP5‑P‑0.95) | 0.016 g (typ.) |
The device operates from a supply voltage of 1 V to 3.6 V.
Maximum power dissipation is 200 mW and the storage temperature range is –65 °C to 150 °C.
Two SSOP packages are listed: SSOP5‑P‑0.95 (0.016 g) and SSOP5‑P‑0.65A (0.006 g).
Yes, it is not intended for safety‑critical or high‑reliability applications such as medical, aerospace, traffic signal or combustion control equipment.
