TB6612FNG is a dual DC motor driver integrated circuit with features including power supply voltage of 15V (max), output current of 1.2A (ave)/3.2A (peak), output low ON resistance of 0.5Ω, etc.
The TB6612FNG is a dual DC motor driver IC that uses low‑ON‑resistance LDMOS output transistors. It provides forward, reverse, short‑brake and stop functions controlled by two input signals (IN1, IN2) plus PWM and standby pins.

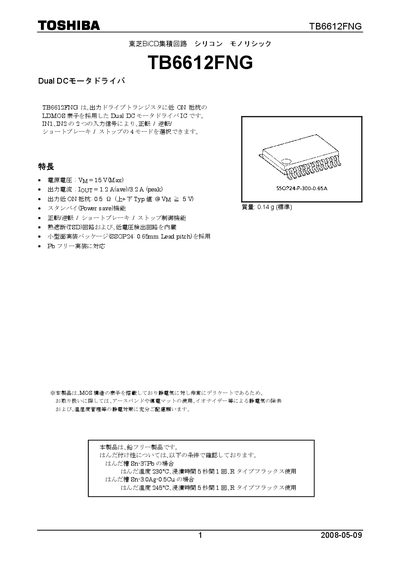

The document includes a block diagram, pin description, absolute maximum ratings, electrical characteristics, typical application circuits, package dimensions, and handling notes for safe design and thermal management. This manual is written in Japanese.
| Supply voltage (VM) max | 15 V |
|---|---|
| Output current (average / peak) | 1.2 A avg / 8.9 A peak |
| Operating supply voltage range (Vcc) | 2.7 V – 5.5 V |
| Motor supply voltage range (VM) | 2.5 V – 13.5 V |
Two input signals (IN1 and IN2) select forward, reverse, short‑brake, or stop modes.
The maximum supply voltage (VM) is 15 V.
