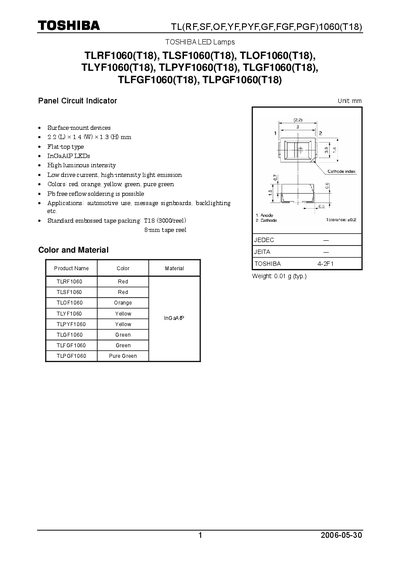

Toshiba TL(RF,SF,OF,YE,PYF,GE,FGF,PGF)1060(T18) User Manual
This manual describes the Toshiba TL1060(T18) family of surface‑mount LED lamps, covering variants such as TLRF1060 (Red), TLSF1060 (Red), TLOF1060 (Orange), TLYF1060 (Yellow), TLGF1060 (Green) and TLPGF1060 (Pure Green). It lists their typical applications, including automotive use, message signboards, and general backlighting.
The document includes maximum electrical ratings, forward voltage and current data, luminous intensity and color information, packaging details (3,000 LEDs per reel), and safety restrictions for product use. It also provides handling cautions regarding IR emission and unsuitable high‑reliability applications.
Toshiba T18 specifications
| Forward Current (typical) | 20 mA |
|---|---|
| Recommended Pb Soldering Temperature | 240 °C max |
| Recommended Pb‑Free Soldering Temperature | 260 °C max |
All Toshiba T18 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the recommended soldering temperatures for these LEDs?
Use a Pb soldering profile up to 240 °C max and a Pb‑free profile up to 260 °C max.
What is the typical forward current for these LEDs?
The typical forward current is 20 mA.
What is the typical forward voltage for the TL1060 series LEDs?
The typical forward voltage is about 2.0 V for variants such as TLRF1060 and TLSF1060.
From: Toshiba TL(RF,SF,OF,YE,PYF,GE,FGF,PGF)1060(T18) User Manual
How many LEDs are supplied on a standard reel?
Each reel contains 3,000 LED devices.
From: Toshiba TL(RF,SF,OF,YE,PYF,GE,FGF,PGF)1060(T18) User Manual
