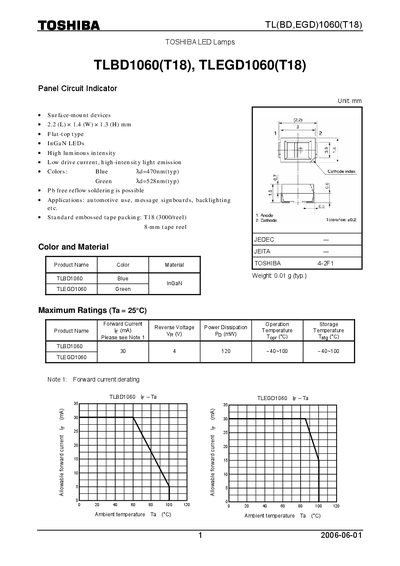

This document introduces the characteristics of TOSHIBA LED Lamps TLBD1060(T18) and TLEGD1060(T18), including dimensions, colors, luminous intensity, working temperature, etc.
The TLBD1060 and TLEGD1060 are surface‑mount InGaN LED devices offered in blue and green colors for automotive, signage and backlighting applications. They feature high luminous intensity, low drive current and are Pb‑free reflow‑solderable.
The document provides detailed electrical and optical characteristics, recommended soldering profiles, moisture‑proof packaging, tape and reel dimensions, as well as safety and usage restrictions for reliable integration into electronic systems.
| Forward Current (typical) | 20 mA |
|---|---|
| Recommended Pb Soldering Temperature | 240 °C max |
| Recommended Pb‑Free Soldering Temperature | 260 °C max |
Use a Pb soldering profile up to 240 °C max and a Pb‑free profile up to 260 °C max.
The typical forward current is 20 mA.
