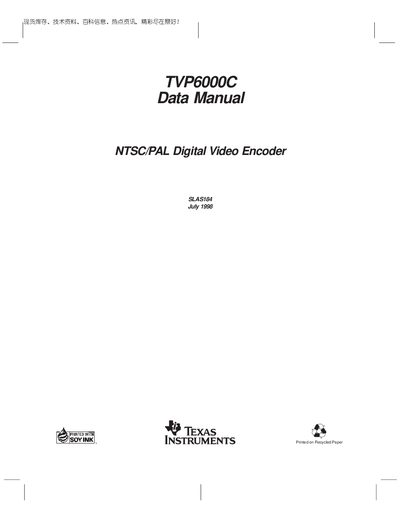

This document is the TVP6000C data manual, which introduces the function and features of the product
The TVP6000C is a digital video encoder designed for multimedia systems that need high‑quality, flicker‑free display of computer graphics, video, and internet content. It converts YCbCr video data to base‑band analog output and supports a range of input sources such as video decoders, graphics controllers, and MPEG devices.
The manual includes an introduction, feature list, applications, functional block diagram, electrical characteristics, timing requirements, register descriptions, and mechanical data. It also provides detailed tables of pin configurations, register maps, and example settings for various operating modes.
| Package | 80‑pin TQFP |
|---|---|
| Supply Voltage | 5 V operation |
| Video Output Formats | NTSC‑M, PAL‑B/D/G/H/I, PAL‑M, PAL‑N |
| Digital Input Formats | YUV 4:2:2 on 16‑bit port, CCIR‑656 YUV 4:2:2 on 8‑bit port, YUV 4:2:2 on 8‑bit port |
| Antiflicker Filter | 3‑tap |
It supports NTSC‑M, PAL‑B/D/G/H/I, PAL‑M, and PAL‑N output formats.
The device is supplied in an 80‑pin TQFP package.
The TVP6000C operates from a 5‑V supply.
It accepts YUV 4:2:2 on a 16‑bit port, CCIR‑656 YUV 4:2:2 on an 8‑bit port, and YUV 4:2:2 on an 8‑bit port.
