Start here

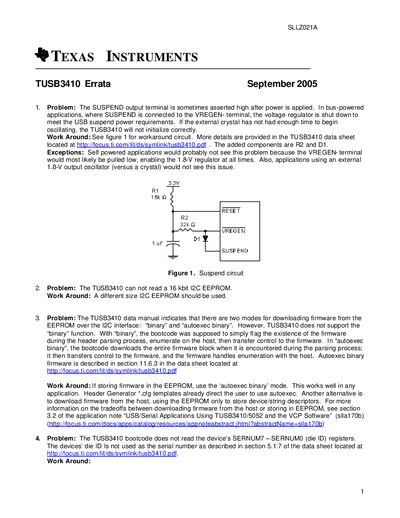

Texas Instruments TUSB3410 Errata Data Sheet
The document details four main problems affecting the TUSB3410 USB controller, including suspend output behavior, I2C EEPROM compatibility, firmware download modes, and serial‑number register reading. For each issue, a specific work‑around is provided, often referencing circuit modifications or firmware configuration changes.
An important notice at the end outlines TI's legal disclaimer and provides links to related product information and application notes.
Texas Instruments TUSB3410 specifications
| Supply voltage (VCC) | 3.3 V (typical) |
|---|---|
| Input voltage range | -0.5 V to 3.6 V |
| Operating temperature (commercial) | 0 °C to 70 °C |
| Operating temperature (industrial) | -40 °C to 85 °C |
| UART baud‑rate range | 50 bps to 921.6 kbps |
| USB data rate | 12 Mbps (full speed) |
| GPIO terminals | Four |
Source: Texas Instruments TUSB3410 USB to Serial Port Controller Data Manual
All Texas Instruments TUSB3410 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended workaround for the suspend output problem?
Add the components R2 and D1 as shown in Figure 1 to create a suspend circuit that prevents the output from staying high after power‑up.
Can the TUSB3410 read a 16 kbit I2C EEPROM?
No, the device cannot read a 16 kbit I2C EEPROM; a different size EEPROM should be used.
What is the maximum operating temperature for the TUSB3410?
The device is rated for an industrial temperature range of –40 °C to 85 °C.
From: Texas Instruments TUSB3410 USB to Serial Port Controller Data Manual
How many GPIO terminals does the TUSB3410 provide?
The controller provides four GPIO terminals on the 8052 port 3.
From: Texas Instruments TUSB3410 USB to Serial Port Controller Data Manual
