Start here

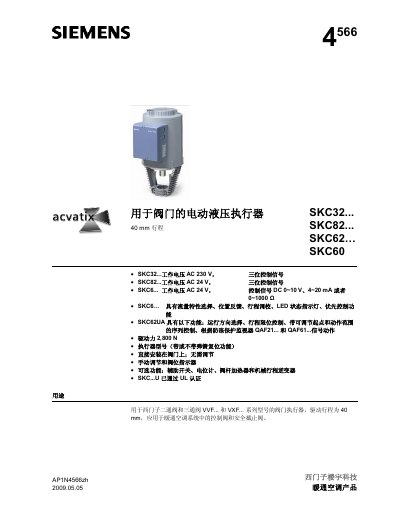

Siemens SKC Series Electric Hydraulic Actuator for Valves User Manual
This document provides instructions for the Siemens Building Technologies electric hydraulic actuators (models SKC32, SKC82, SKC62, and SKC60) designed for use with two-way and three-way valves in HVAC systems. The actuators feature a 40 mm stroke and utilize a hydraulic pump and reset spring mechanism to drive the valve. They support various control signals including AC 230V, AC 24V, and DC 0-10V or 4-20mA. This manual is written in Chinese.
Read onlineSiemens SKC82... specifications
| Stroke | 40 mm |
|---|---|
| Drive Force | 2,800 N |
| Operating Voltage (SKC32/SKC82) | AC 230 V / AC 24 V |
| Operating Voltage (SKC6) | AC 24 V |
| Control Signals (SKC6) | DC 0~10 V, 4~20 mA, 0~1000 Ω |
| Compatible Valves | VV... and VX... series |
Source: Siemens SKC Series Electric Hydraulic Actuator for Valves User Manual
All Siemens SKC82... documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What is the drive force of the actuator?
The actuator has a drive force of 2,800 N.
From: Siemens SKC Series Electric Hydraulic Actuator for Valves User Manual
Which valves are compatible with this actuator?
It is designed for Siemens two-way (VV...) and three-way (VX...) valve series.
From: Siemens SKC Series Electric Hydraulic Actuator for Valves User Manual
What is the working voltage for the SKB32 actuator?
The SKB32 actuator operates on AC 230 V.
From: Siemens SKB32/SKC32/SKB82/SKC82 Electric-Hydraulic Valve Actuator Service Manual
What is the maximum adjusting force of these actuators?
The adjusting force can reach up to 2800 N.
From: Siemens SKB32/SKC32/SKB82/SKC82 Electric-Hydraulic Valve Actuator Service Manual
