Key facts
- Brand
- Siemens
- Model
- S110
- Category
- Industrial Robot
- Industry
- Industrial
- Documents
- 2
- Languages
- ZH
- Last added
- 2026-10-18
Start here

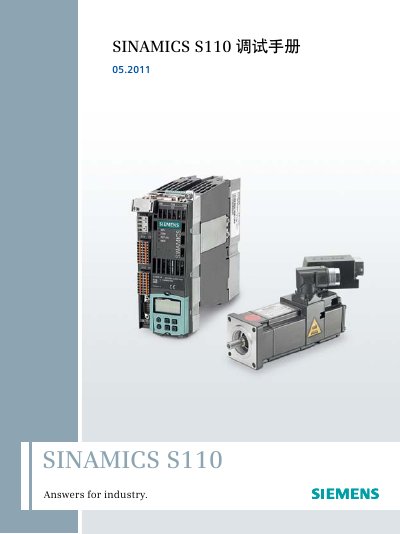

Siemens SINAMICS S110 Commissioning Manual
The SINAMICS S110 is a basic position controller designed for single-axis positioning in mechanical engineering and factory equipment. It consists of a control unit (CU305) and a power module (PM340) and supports both synchronous servo and asynchronous induction motors. The drive features an integrated basic position controller (EPos) for simple positioning tasks and includes internal safety functions such as Safe Torque Off (STO) and Safe Brake Control (SBC). This manual is written in Chinese.
Read onlineSiemens S110 specifications
| Power Range | 0.12 ~ 90 kw |
|---|---|
| Control Unit Model | CU305 |
| Power Module Model | PM340 |
| Analog Input Resolution | 13 bit |
| Safety Functions | STO, SBC, SS1, SS2, SOS, SLS, SSM |
All Siemens S110 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What software is used for commissioning the SINAMICS S110?
The Starter or SIMOTION SCOUT software is used for commissioning.
Which motors does the SINAMICS S110 support?
It is designed to control synchronous servo motors and asynchronous induction motors.
What is the recommended height for installing the thermostat on a wall?
The device should be installed at a height of more than 1.50 m above the floor.
What is the maximum rated current for the AC 230 V power line circuit breaker?
The power line must be connected to a circuit breaker with a rated current not greater than 10 A.
