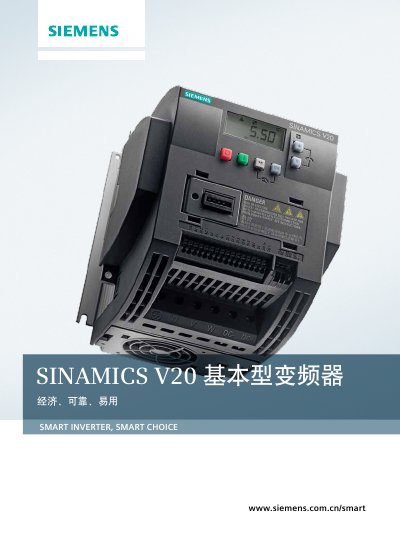

Siemens SINAMICS V20 Inverter Product Brochure
The Siemens SINAMICS V20 is a basic type inverter designed to meet general automation requirements with characteristics of being economical, reliable, and easy to use. It offers a power range from 0.12 kW to 15 kW and supports various control modes including V/f, V2/f, and FCC. The device features energy-saving capabilities such as automatic flux reduction and sleep mode, along with an 'abnormality non-stop' function for uninterrupted operation. This manual is written in Chinese.
Read onlineSiemens SINAMICS V20 specifications
| Power Range (1AC 230V) | 0.12 ... 3.0 kW |
|---|---|
| Power Range (3AC 400V) | 0.37 ... 15.0 kW |
| Voltage Range (1AC) | 200 V ... 240 V (-10 % / +10 %) |
| Voltage Range (3AC) | 380 V ... 480 V (-15 % / +10 %) |
| Operating Temperature | 0 ... 60ºC |
| Protection Class | IP20 |
All Siemens SINAMICS V20 documents by type
Questions answered in these manuals
What is the power range of the SINAMICS V20?
The inverter covers a power range from 0.12 kW to 15 kW.
Does the V20 support energy saving modes?
Yes, it includes built-in energy-saving modes for V/f and V2/f control via automatic flux adjustment.
What is the power output range of the SINAMICS V20 inverter?
The power output covers a range from 0.12 kW to 15 kW.
What is the maximum operating temperature for the inverter?
The inverter can operate at an ambient temperature of up to 60ºC.
