Start here

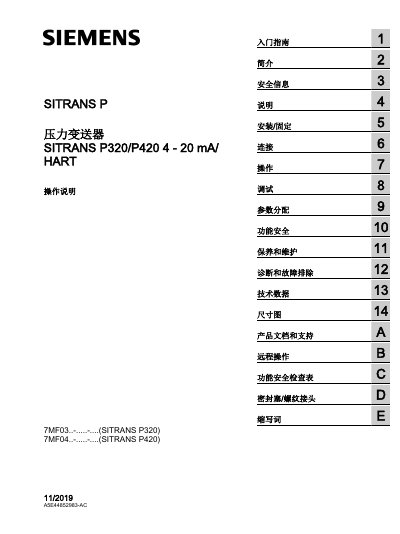

Siemens SITRANS P320/P420 Transmitter Operation Manual

Siemens SITRANS P320/P420 Transmitter Operation Manual

User Manual 312 pages · 7 MB · ZH

The document serves as a comprehensive operation guide for the SITRANS P320 and SITRANS P420 series of 4-20 mA/HART pressure transmitters. It details the product's application in industrial environments for measuring pressure, differential pressure, and level.

Key sections include safety information, installation procedures (including remote seal systems), electrical connections, device operation via display or remote tools, commissioning steps, parameter assignment, functional safety configuration, maintenance guidelines, and troubleshooting. This manual is written in Chinese.

Read online

Siemens SITRANS P320/P420 specifications

Communication protocolHART7 with Long tag support
Linear characteristic (P320)1:1…5:1: 0.065%; TD > 5:1: (0.005 x r + 0.05)%
Linear characteristic (P420)1:1…5:1: 0.04%; TD > 5:1: (0.004 x r + 0.045)%
Temperature error (P420)(0.0125 x r + 0.0625)% / 28K
Total performance (TD 1:1)SITRANS P320 0.18%; SITRANS P420 0.12%
Long term stability0.125% / 5a
Step response time135 ms DP / 105 ms P for SITRANS P320 and P420
SafetyDeveloped according to IEC61508 for SIL2/3 applications, SFF > 92%
Housing materialAluminum or stainless steel 316L
Membrane materialStainless steel 316L, alloy C276, Monel 400, tantalum or gold
Trend Log capacity2 process values, max. 1500 points

Source: Siemens SITRANS P320/P420 Pressure Transmitter Product Presentation
