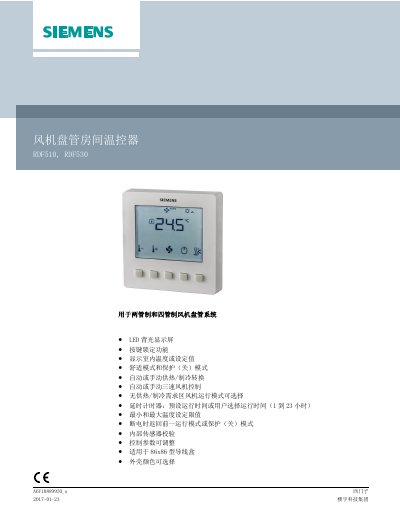

Siemens RDF510/RDF530 Fan Coil Room Thermostat User Manual
The Siemens RDF510 and RDF530 are room thermostats designed for controlling indoor temperatures in fan coil units within two-pipe and four-pipe heating and cooling systems. The RDF510 is intended for two-pipe systems, while the RDF530 supports four-pipe systems. Key features include an LED backlit display, key lock function, and the ability to display either room temperature or set values. Users can select between automatic or manual heating/cooling conversion and control a three-speed fan or valve actuators. This manual is written in Chinese.
Read onlineSiemens RDF510 specifications
| Application | Two-pipe and four-pipe fan coil systems |
|---|---|
| Display | LED backlit display |
| Mounting Box Size | 86x86mm |
| Mounting Hole Spacing | 60.3mm |
| Power Supply | AC 230 V |
| Max Current Load | 5 A |
| Internal Fuse | 6.3 A slow-blow |
| Temperature Range | 0 °C to 49 °C |
Source: Siemens RDF510/RDF530 Fan Coil Room Thermostat User Manual
All Siemens RDF510 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the difference between the RDF510 and RDF530 models?
The RDF510 is for two-pipe fan coil systems, while the RDF530 is for four-pipe systems.
From: Siemens RDF510/RDF530 Fan Coil Room Thermostat User Manual
How do I reset the thermostat to factory settings?
Select parameter P71 and set the value to 'ON' (开) to reload factory settings.
From: Siemens RDF510/RDF530 Fan Coil Room Thermostat User Manual
