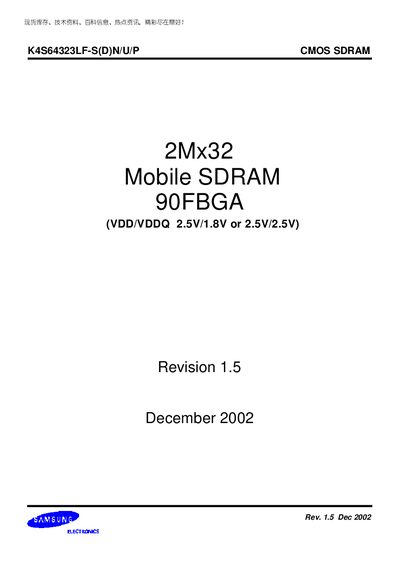

Samsung K4S64323LF-S(D)N/U/P CMOS SDRAM Datasheet
The K4S64323LF-S(D)N/U/P is a 512K × 32‑bit × 4‑bank CMOS SDRAM manufactured by Samsung. It operates with a 2.5 V power supply and supports a range of CAS latencies, burst lengths and operating frequencies up to 133 MHz.
The document provides detailed electrical ratings, package dimensions, pin functions, timing parameters, and command tables for designers integrating this memory device into high‑performance systems.
Samsung K4S64323LF-S specifications
| Capacity | 512K × 32 bit × 4 Banks SDRAM |
|---|---|
| Supply Voltage | 2.5 V (VDD/VDDQ) |
| Operating Temperature | Extended: -25 °C to 85 °C; Industrial: -40 °C to 85 °C |
| Package | 90‑Ball FBGA |
| Maximum Clock Frequency | 133 MHz (CL=3) |
All Samsung K4S64323LF-S documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range of the K4S64323LF‑S(D)N/U/P?
The device operates from –25 °C to 85 °C in the extended temperature range and from –40 °C to 85 °C in the industrial temperature range.
What supply voltage does the SDRAM require?
It requires a 2.5 V supply (VDD/VDDQ).
What is the operating temperature range of the K4S64323LF‑S(D)G/S?
The device operates from –25 °C to 85 °C.
What supply voltage does the K4S64323LF‑S(D)G/S require?
Typical supply voltage is 2.5 V, with a range of 2.3 V to 2.7 V.
