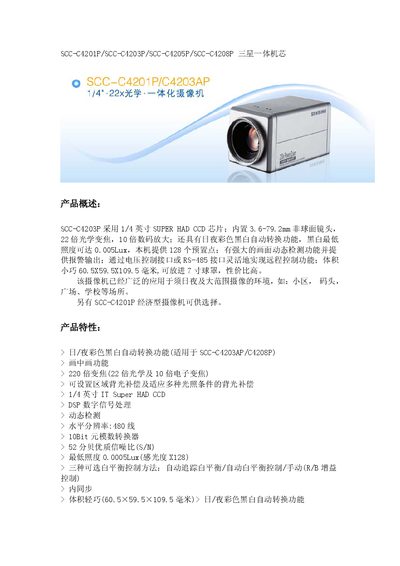

Samsung SCC-C4201P / SCC-C4203P / SCC-C4205P / SCC-C4208P Integrated Camcorder User Manual
This manual describes Samsung's integrated camcorder series SCC-C4201P, SCC-C4203P, SCC-C4205P and SCC-C4208P. The devices use a 1/4‑inch Super HAD CCD sensor, offer 22× optical zoom, 10× digital zoom, and support day/night color‑to‑black‑white automatic conversion for surveillance in various environments.
Key functions include 128 preset positions, dynamic scene detection with alarm output, remote control via voltage interface or RS‑485, and a compact housing of 60.5 × 59.5 × 109.5 mm that fits a 7‑inch dome. Technical parameters such as resolution, signal‑to‑noise ratio, and illumination requirements are detailed in the specifications section. This manual is written in Chinese.
Samsung SCC-C4201P specifications
| CCD sensor type | 1/4 inch Interline Transfer Super HAD CCD |
|---|---|
| Optical zoom | 22× |
| Digital zoom | 10× |
| Horizontal resolution | 480 lines |
| Signal‑to‑noise ratio | >52 dB |
| Minimum illumination (color) | 0.3 Lux (ISO 4) |
| Preset positions | 128 |
| Remote control interfaces | Voltage control interface, RS‑485 |
| Dimensions | 60.5 × 59.5 × 109.5 mm |
Source: Samsung SCC-C4201P / SCC-C4203P / SCC-C4205P / SCC-C4208P Integrated Camcorder User Manual
