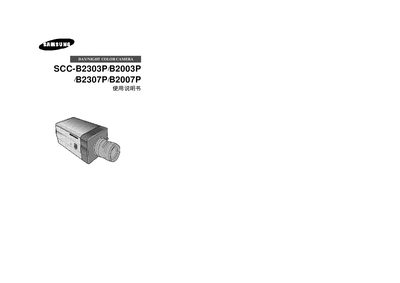

SCC B2303P/B2003P/B2307P/B2007P Day/Night Color Camera User Manual
This manual provides safety instructions, product features, part names, installation steps, and camera settings for the SCC DAY/NIGHT color cameras (models B2303P, B2003P, B2307P, B2007P). It explains how the camera switches between color and black‑white modes, low‑light functionality, and how to connect power and signal cables.
The document also includes detailed specifications such as power requirements, sensor type, resolution, and optional functions like digital zoom, picture‑in‑picture, and motion detection. Appendices list part numbers, dimensions, and environmental limits. This manual is written in Chinese.
Samsung SCC-B2303P specifications
| Power voltage (B2303P/B2307P) | AC 24V ±10% (50Hz ±0.1Hz), DC12V +10% -5% |
|---|---|
| Power voltage (B2003P/B2007P) | AC 220V ~ AC 240V (50Hz ±0.1Hz) |
| Power consumption | ≈4.5 W (B2303P/B2307P), ≈5 W (B2003P/B2007P) |
| Image sensor | 1/3 inch Super HAD CCD (B2303P/B2003P) |
| Image sensor | 1/3 inch EXview HAD CCD (B2307P/B2007P) |
| Resolution | 500 TV lines (color) / 530 TV lines (B/W) |
| Signal‑to‑noise ratio | 52 dB (auto‑gain off) |
| Minimum illumination (color) | 0.2 Lux (F1.2) for B2307P/B2007P |
| Minimum illumination (B/W) | 0.03 Lux (F1.2) for B2307P/B2007P |
| Video output | Composite 1.0 V‑p‑p, 75 Ω BNC |
| Dimensions | 68 mm × 55 mm × 128.5 mm (W × H × D) |
Source: SCC B2303P/B2003P/B2307P/B2007P Day/Night Color Camera User Manual
All Samsung SCC-B2303P documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power source should be used with the camera?
Use the power socket supplied with the product; using a non‑provided socket may cause fire, electric shock, or malfunction.
