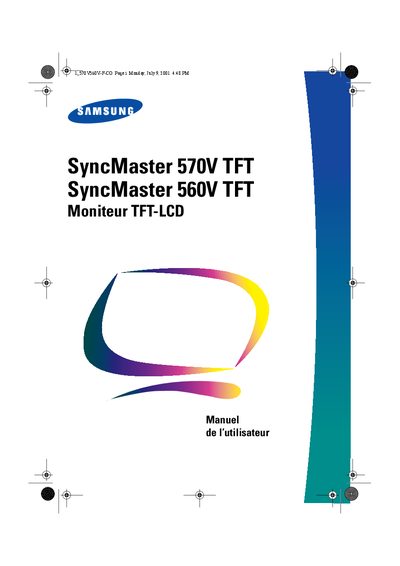

Samsung SyncMaster 570V/560V TFT LCD Monitor User Manual
This manual covers all essential information for safely setting up and using the Samsung SyncMaster 570V/560V TFT LCD monitor. It begins with safety precautions, unboxing instructions, and ergonomic workstation recommendations, then walks through monitor installation, cable connections, and driver setup.
Additional sections explain the monitor’s auto‑test function, power‑saving features, troubleshooting tips, technical specifications, wiring diagrams, display modes, and how to clean and maintain the unit. The document also includes details on VESA mounting and replacement of the monitor stand. This manual is written in French.
Samsung 560V specifications
| Power Class | max +33dBm |
|---|---|
| Frequency Bands (MHz) | 880~915, 1710~1785, 1850~1910, 1920~1980 |
| Sensitivity | -102dBm (GSM850), -100dBm (DCS1800/PCS1900), -106.7dBm (WCDMA2100) |
| Modulation | 0.3GMSK (GSM), HPSK (WCDMA) |
All Samsung 560V documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What safety precautions should be taken when repairing the SGH-i560V?
Use a standard screwdriver, avoid magnetic tools, work in a shielded box, and follow all ESD precautions to prevent damage to sensitive components.
Which GSM frequency bands are supported by the SGH-i560V?
The phone supports EGSM 900 (880‑915 MHz), DCS 1800 (1710‑1785 MHz), PCS 1900 (1850‑1910 MHz), and WCDMA 2100 (1920‑1980 MHz).
