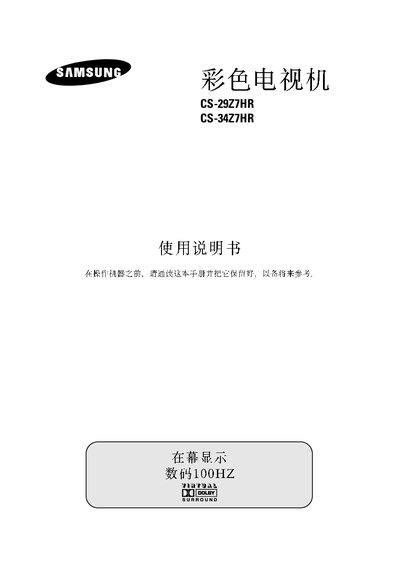

Samsung CS-29Z7HR / CS-34Z7HR Color Television User Manual
This manual provides safety instructions and warnings for handling the Samsung CS‑29Z7HR/CS‑34Z7HR color television, including precautions against high voltage and moisture. It also details the required AC 220 V power source and proper grounding.
The guide describes the front control panel layout, audio/video input options, picture settings, and supported broadcast standards (PAL, SECAM, NTSC). Technical specifications such as dimensions, weight, power consumption and channel ranges are listed in the specifications section. This manual is written in Japanese.
Samsung CS-34Z7HR specifications
| Dimensions (W×H×D) mm | 70×615×545 |
|---|---|
| Power supply voltage | AC 220 V |
| Supported TV standards | PAL, SECAM, NTSC 3.8, NTSC 4.43 |
| Audio standards | B4G, 1I, D/K, M |
| VHF‑L channel range | 1‑5 |
| VHF‑H channel range | 6‑12 |
| UHF channel range | 13‑37 |
| CATV channel range | Z1‑Z37 |
Source: Samsung CS-29Z7HR / CS-34Z7HR Color Television User Manual
All Samsung CS-34Z7HR documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
Which broadcast standards does the TV support?
It supports PAL, SECAM, NTSC 3.8 and NTSC 4.43 for picture, and B4G, 1I, D/K, M for audio.
From: Samsung CS-29Z7HR / CS-34Z7HR Color Television User Manual
What are the dimensions and weight of the CS‑29Z7HR model?
The CS‑29Z7HR measures 70 × 615 × 545 mm and weighs approximately 48 kg.
From: Samsung CS-29Z7HR / CS-34Z7HR Color Television User Manual
What safety precautions must be taken before repairing the TV?
All built‑in protective devices must be reinstalled, and the chassis must be free of open holes that could allow a child to touch live parts.
From: Samsung CS34Z7HRGX/XTT Color Television Service Manual
How should the dynamic focus be adjusted after replacing the CRT?
Set the dynamic focus VR to its maximum, then fine‑tune both static and dynamic focus VRs while observing the screen until the vertical and third lines are clear.
From: Samsung CS34Z7HRGX/XTT Color Television Service Manual
