Key facts
- Brand
- Samsung
- Model
- LA40A650
- Documents
- 2
- Languages
- ZH · EN
- Last added
- 2012-03-22
Start here

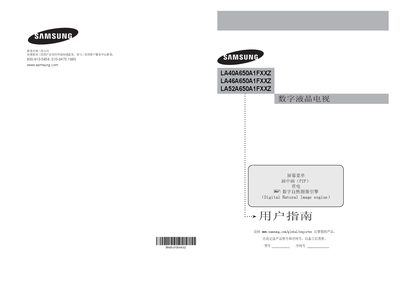

Samsung LA40A650A1FXXZ Digital Television User Manual
This manual explains safety precautions for the Samsung LA40A650A1FXXZ LCD TV, including warnings about water, electrical shock, and proper ventilation. It also covers how to install the antenna isolation device and recommended clearances from walls and heat sources.
The guide details the control panel layout, how to connect external devices such as HDMI, component, and AV inputs, and how to use the TV’s features like PIP, AnyNet+, and audio settings. It includes menu navigation, picture and sound adjustments, and troubleshooting tips. This manual is written in Chinese.
Samsung LA40A650 specifications
| Screen size | 40 inches |
|---|---|
| Resolution | 1920 x 1080 @ 60 Hz |
| Dimensions (W×H×D) | 998 mm × 83 mm × 638 mm |
| Brightness | 400 cd/m² |
| Refresh rate range | 200–6000 Hz |
Source: Samsung LA40A650/LA46A650/LA52A650 Television User Manual
All Samsung LA40A650 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How long can a static image be displayed without risking screen burn‑in?
Avoid displaying a static image for more than 2 hours and lower the brightness and contrast when doing so.
How do I connect the antenna isolation device?
Connect plug 1 to the cable, then connect plug 2 to the TV’s ANT and input terminals as shown.
What is the screen resolution of the LA40A650 model?
The LA40A650 model has a resolution of 1920 × 1080 at 60 Hz.
From: Samsung LA40A650/LA46A650/LA52A650 Television User Manual
What are the physical dimensions of the LA40A650 TV?
The LA40A650 measures 998 mm × 83 mm × 638 mm (W × H × D).
From: Samsung LA40A650/LA46A650/LA52A650 Television User Manual
