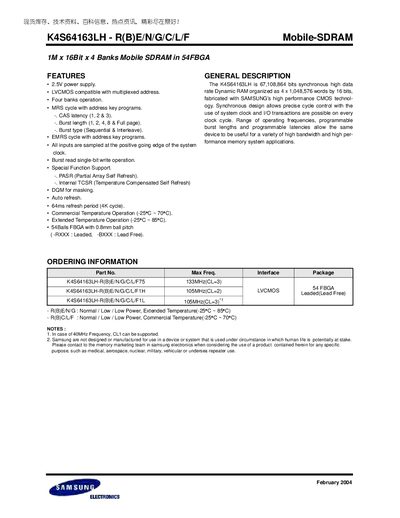

Samsung K4S64163LH Mobile SDRAM Handbook
The handbook describes the Samsung K4S64163LH Mobile SDRAM, a 1M × 16‑bit, four‑bank memory device packaged in a 54‑ball FBGA. It lists key features such as 2.5 V supply, LVCMOS‑compatible multiplexed address, various CAS latencies and burst lengths, and special functions like PASR and internal temperature‑compensated self‑refresh.
Detailed sections cover ordering information, package dimensions, absolute maximum ratings, DC and AC operating conditions, timing parameters, power‑up sequence, and burst operation. The document also includes electrical characteristics, pin assignments, and self‑refresh options for different temperature ranges.
Samsung K4S64163LH specifications
| Memory organization | 1M × 16‑bit, 4 banks |
|---|---|
| Supply voltage (Vop) | 2.3 V min / 2.5 V typ / 2.7 V max |
| Maximum operating frequency | 133 MHz (CL=3) |
| Package type | 54‑ball FBGA, 0.8 mm ball pitch |
| Temperature range | Commercial: -25 °C to 70 °C; Extended: -25 °C to 85 °C |
| Refresh period | 64 ms (4K cycle) |
| Maximum power dissipation | 1.0 W |
