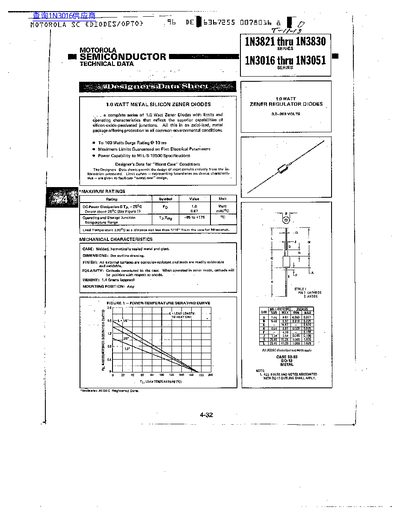

Motorola 1N3821-1N3830 Zener Diode Datasheet
The 1N3821‑1N3830 series are 1.0 W metal‑silicon Zener diodes covering a voltage range of 3.3 V to 200 V. The datasheet lists maximum ratings, power‑dissipation limits, and typical electrical characteristics for design use.
Mechanical data include a hermetically sealed metal‑glass case, lead temperature rating of 230 °C, and a weight of about 1.4 g. Thermal response curves and surge‑current capabilities are provided to aid worst‑case design and reliability analysis.
Motorola 1N3830 specifications
| Power Dissipation (25 °C) | 1.0 Watt |
|---|---|
| Zener Voltage Range | 3.3 V – 200 V |
| Weight | 1.4 g (approx) |
| Surge Rating (10 ms) | 100 Watt |
All Motorola 1N3830 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum power dissipation of the 1N3821‑1N3830 Zener diodes?
The diodes can dissipate up to 1.0 Watt at a case temperature of 25 °C.
What voltage range does the 1N3821‑1N3830 series cover?
The series is available from 3.3 V up to 200 V Zener voltage.
What is the maximum surge rating for these diodes?
The diodes can handle up to 100 W surge current for a 10 ms pulse.
From: Motorola 1N3821‑1N3830 & 1N3016‑1N3051 Zener Diode Datasheet
What is the allowable lead temperature?
The lead temperature may reach 230 °C for up to 10 seconds.
From: Motorola 1N3821‑1N3830 & 1N3016‑1N3051 Zener Diode Datasheet
