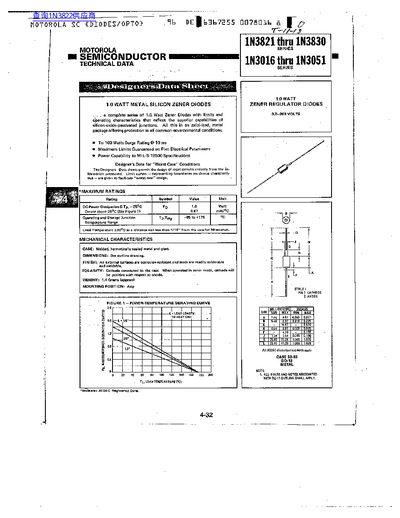

This datasheet provides the technical data for Motorola 1 W metal‑silicon Zener diode series 1N3821‑1N3830 and 1N3016‑1N3051. It includes maximum ratings, mechanical characteristics, electrical parameters, temperature coefficients and application notes.
Key information includes power dissipation, surge current capability, lead temperature limits, Zener voltage range, reverse leakage specifications and thermal response curves, enabling designers to perform worst‑case analysis and reliable circuit design.
| Power Dissipation | 1.0 Watt @ 25°C |
|---|---|
| Maximum Surge Rating | 100 Watts @ 10 ms |
| Lead Temperature Limit | 230 °C (up to 10 s) |
| Weight | 1.4 g (approx.) |
| Case Construction | Welded, hermetically sealed metal and glass |
| Zener Voltage Range | 3.3 V – 200 V |
| Maximum Reverse Leakage | Specified per unit (see figure) |
The diodes can handle up to 100 W surge current for a 10 ms pulse.
The lead temperature may reach 230 °C for up to 10 seconds.
The series provides Zener voltages from 3.3 V to 200 V.
