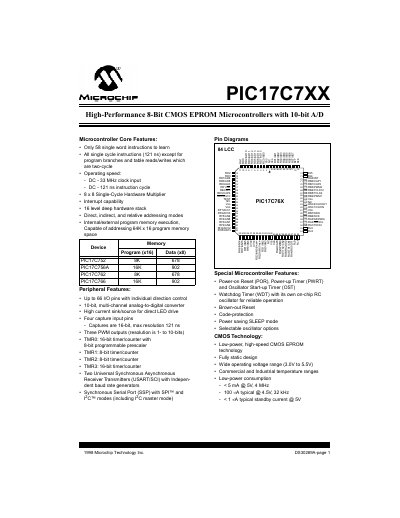

Microchip PIC17C7XX Microcontroller Data Sheet
The document is a comprehensive data sheet for the Microchip PIC17C7XX family of 8-bit CMOS EPROM microcontrollers. It covers core features such as single-cycle instructions, hardware multipliers, and various timer resources including TMR0 through TMR3.
Key peripheral features detailed include up to 66 I/O pins with individual direction control, a 10-bit multi-channel analog-to-digital converter (A/D), and communication modules like USART/SCI and MSSP supporting SPI and I2C modes. The text also specifies device varieties, pin diagrams for different packages (LCC, TQFP, QFP), and special features such as Power-on Reset, Watchdog Timer, and Brown-out Reset. This manual is written in Chinese.
MICROCHIP PIC17C7XX specifications
| Instruction Cycle Time (DC) | 121 ns |
|---|---|
| Operating Speed (Max Clock Input) | 33 MHz |
| Program Memory Size (PIC17C752) | 8K x 16 |
| Data Memory Size (PIC17C752) | 678 bytes |
| Program Memory Size (PIC17C756A) | 16K x 16 |
| Operating Voltage Range | 3.0V to 5.5V |
| A/D Converter Resolution | 10-bit |
All MICROCHIP PIC17C7XX documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating speed for these microcontrollers?
The devices support an operating speed of up to 33 MHz clock input.
What is the typical standby current consumption at 5V?
The typical standby current is less than 1 mA when operating at 5V.
What is the maximum clock speed of PIC17C7XX devices?
The devices operate up to 33 MHz.
From: MICROCHIP PIC17C7XX High-Performance 8-Bit CMOS EPROM Microcontrollers with 10-bit A/D handbook
