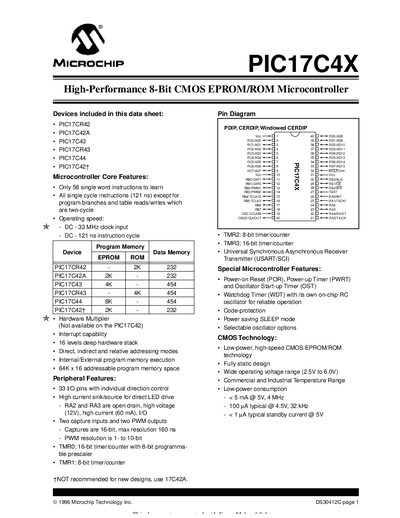

Microchip PIC17C4X High-Performance Microcontroller Data Sheet
This document is a technical datasheet for the PIC17C4X group within the PIC17CXX family of Microchip's 8-bit microcontrollers. It details specific devices including the PIC17CR42, PIC17C42A, PIC17C43, PIC17CR43, and PIC17C44, which feature high-performance CMOS EPROM/ROM technology.
Read onlineMICROCHIP PIC17C4X specifications
| Maximum Frequency of Operation | 33 MHz (PIC17C4X series) |
|---|---|
| Instruction Cycle Time | 121 ns |
| Operating Voltage Range | 2.5V to 6.0V (PIC17C43/44) |
| Program Memory Size | Up to 8K words |
| Data Memory Size | Up to 454 bytes |
| I/O Pins | 33 pins |
Source: Microchip PIC17C4X High-Performance Microcontroller Data Sheet
All MICROCHIP PIC17C4X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What devices are included in the PIC17C4X data sheet?
The devices include PIC17CR42, PIC17C42A, PIC17C43, PIC17CR43, and PIC17C44.
From: Microchip PIC17C4X High-Performance Microcontroller Data Sheet
How many instructions does the PIC17C4X support?
The devices have 58 single word instructions to learn.
From: Microchip PIC17C4X High-Performance Microcontroller Data Sheet
How many I/O pins are available on the PIC17C4X?
Each PIC17C4X device provides 33 I/O pins with individual direction control.
Does the PIC17C4X include a watchdog timer?
Yes, the PIC17C4X devices feature a watchdog timer for reliable operation.
How many I/O pins does the PIC17C4X have?
The PIC17C4X family provides 33 I/O pins with individual direction control.
Does the PIC17C4X include a hardware multiplier?
Yes, an 8 × 8 hardware multiplier is included on all devices except the PIC17C42.
