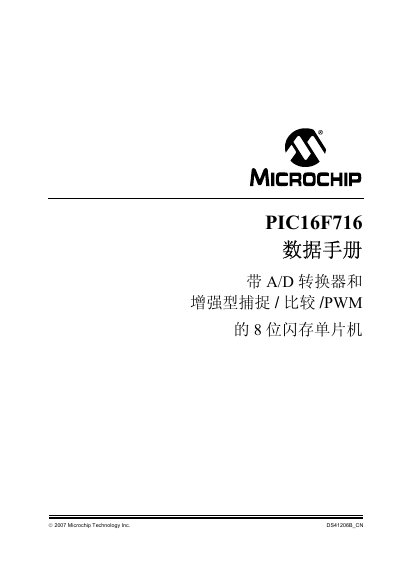

Microchip PIC16F716 8-bit Flash MCU Datasheet
This document is a datasheet for the PIC16F716, an 8-bit flash microcontroller manufactured by Microchip Technology Inc. It details the device's architecture, including its high-performance RISC CPU, memory organization, and various peripheral modules such as timers, an analog-to-digital converter (ADC), and enhanced Capture/Compare/PWM (ECCP) modules.
The datasheet covers the device's electrical characteristics, operating conditions, and pin configurations for different packages, including 18-pin PDIP/SOIC and 20-pin SSOP. It also provides information on development support, instruction sets, and specific features like code protection and low-power modes. This manual is written in Chinese.
MICROCHIP PIC16F716 specifications
| Operating Voltage Range (Industrial) | 2.0V to 5.5V |
|---|---|
| Operating Voltage Range (Extended) | 3.0V to 5.5V |
| Number of I/O Pins | 13 |
| Clock Speed | DC - 20 MHz |
| Instruction Cycle Time | DC - 200 ns |
| ADC Resolution | 10-bit |
| Capture/Compare Resolution | 16-bit |
| Stack Depth | 8 layers |
All MICROCHIP PIC16F716 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range for the industrial grade PIC16F716?
The industrial grade operating voltage range is 2.0V to 5.5V.
How many I/O pins does the PIC16F716 have?
The device has 13 I/O pins that can be individually controlled for direction.
What is the operating voltage range for the PIC16F716?
The device operates from 2.0 V to 5.5 V in the industrial range and from 3.0 V to 5.5 V in the extended range.
How many interrupt sources does the PIC16F716 support?
It supports up to seven internal or external interrupt sources.
What is the function of the MCLR/VPP pin?
MCLR/VPP is the master reset input; the device is reset when the pin is held low.
From: Microchip PIC16F716 8-bit Flash Microcontroller Datasheet
What is the maximum operating frequency of the PIC16F716?
The device can operate with a clock input up to 20 MHz.
From: Microchip PIC16F716 8-bit Flash Microcontroller Datasheet
