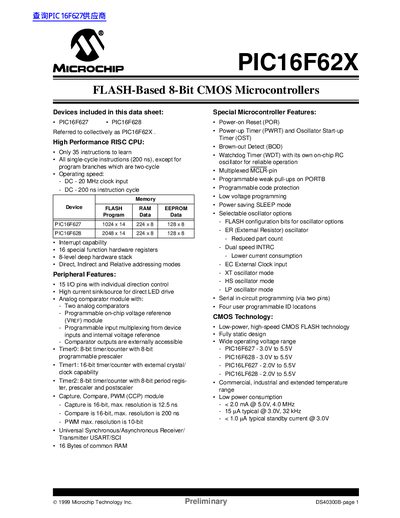

This document introduces the features and characteristics of the PIC16F62X series products produced by Microchip Technology Inc. These products feature a high-performance RISC CPU, interrupt capability, special function hardware registers, hardware stack, and various addressing modes. They are also equipped with various peripheral features such as I/O pins, analog comparator module, timers, capture/compare/PWM module, and USART/SCI. The document also provides information about the memory capacity of these products.
The PIC16F62X family includes the PIC16F627, PIC16F628, PIC16LF627 and PIC16LF628 devices. They are 18‑pin, flash‑based, 8‑bit CMOS microcontrollers with a high‑performance RISC core, up to 20 MHz operation and a range of on‑chip peripherals such as timers, comparators, USART and capture/compare/PWM modules.
The datasheet provides detailed memory organization, electrical specifications, package options, and development support information, including programming methods and available development tools. It also lists Microchip’s worldwide sales and service contacts.
| Flash program memory (words) – PIC16F627 | 1024 |
|---|---|
| RAM data memory | 224 bytes |
| EEPROM data memory | 128 bytes |
| Operating voltage range – PIC16F627/628 | 3.0 V to 5.5 V |
| Number of I/O pins | 15 |
| Timer modules | TMRO, TMR1, TMR2 |
| Comparator count | 2 |
Each device provides 15 I/O pins with individual direction control.
The devices include TMRO, TMR1 and TMR2 timer modules.
