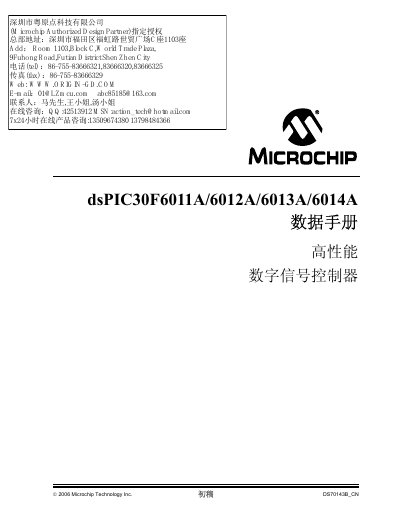

Microchip dsPIC30F6011A/6012A/6013A/6014A Datasheet
This document provides a comprehensive overview of the dsPIC30F6011A/6012A/6013A/6014A digital signal controllers, including their improved Harvard‑architecture RISC CPU, on‑chip flash and EEPROM memory, and a rich set of peripherals such as timers, UART, CAN, SPI, I2C and a 12‑bit ADC. Detailed sections describe the device pin‑out, package options, and programming features like ICSP and code protection.
The handbook also lists electrical characteristics, voltage ranges, operating speed (up to 30 MIPS), interrupt sources, and development support resources. Appendices contain version history, part comparison tables, and contact information for Microchip sales and technical support. This manual is written in Chinese.
MICROCHIP DSPIC6014A specifications
| Maximum Flash Program Memory | 144 KB |
|---|---|
| Maximum On‑Chip RAM | 8 KB |
| Maximum Operating Speed | 30 MIPS |
| Operating Voltage Range | 2.5 V – 5.5 V |
| Number of Interrupt Sources | 41 |
