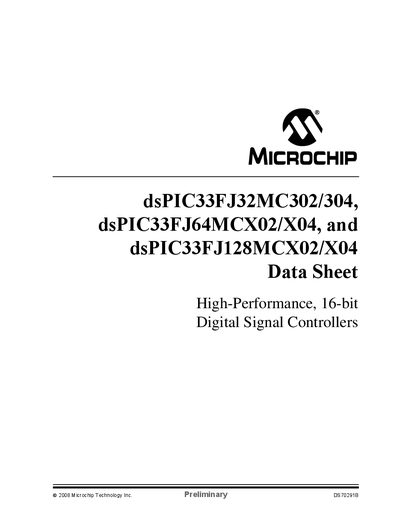

Microchip dsPIC33FJ32MC302/304, dsPIC33FJ64MCX02/X04, dsPIC33FJ128MCX02/X04 Datasheet
The dsPIC33FJ family are high‑performance 16‑bit digital signal controllers offering up to 40 MIPS operation, a modified Harvard architecture, and a rich set of peripherals for motor control, communications, and analog processing. The devices support flexible clock options, multiple power‑saving modes, and extensive interrupt capabilities.
The datasheet details pin diagrams for various packages (28‑pin SDIP, 44‑pin QFN, etc.), memory configurations (up to 128 KB Flash, 16 KB SRAM), DMA channels, ADCs, DACs, PWM modules, and communication interfaces such as SPI, UART, CAN, and parallel master‑slave ports. It also includes product identification, ordering information, and worldwide sales contacts.
MICROCHIP DSPIC33FJ128MCX02 specifications
| Maximum operating speed | 40 MIPS |
|---|---|
| Industrial temperature range | -40°C to +85°C |
| Extended temperature range | -40°C to +125°C |
| Program flash memory | up to 128 KB |
| Data SRAM | up to 16 KB |
| ADC resolution and speed | 10‑bit 1.1 Msps or 12‑bit 500 ksps |
| DAC resolution and speed | 16‑bit dual‑channel, up to 100 ksps |
| Package options | 28‑pin SPDIP/SOIC/QFN‑S, 44‑pin TQFP/QFN |
| Timers | 5 timers (4 programmable), multiple PWM channels |
Source: Microchip dsPIC33FJ32MC302/304, dsPIC33FJ64MCX02/X04, dsPIC33FJ128MCX02/X04 Datasheet
All MICROCHIP DSPIC33FJ128MCX02 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Microchip dsPIC33FJ32MC302/304, dsPIC33FJ64MCX02/X04, dsPIC33FJ128MCX02/X04 Datasheet 398 p
- MICROCHIP dsPIC33FJ32MC302/304 dsPIC33FJ64MCX02/X04 dsPIC33FJ128MCX02/X04 super 16 pin digital signal controller handbook
- Microchip dsPIC33FJ32MC302/304, dsPIC33FJ64MCX02/X04, dsPIC33FJ128MCX02/X04 Datasheet 418 p
Questions answered in these manuals
What is the maximum operating speed of the dsPIC33FJ controllers?
The controllers can operate up to 40 MIPS at 3.0‑3.6 V.
From: Microchip dsPIC33FJ32MC302/304, dsPIC33FJ64MCX02/X04, dsPIC33FJ128MCX02/X04 Datasheet
Which temperature ranges are supported?
They support an industrial range of –40 °C to +85 °C and an extended range of –40 °C to +125 °C.
From: Microchip dsPIC33FJ32MC302/304, dsPIC33FJ64MCX02/X04, dsPIC33FJ128MCX02/X04 Datasheet
