Microchip dsPIC30F6011A/6012A/6013A/6014A Digital Signal Controller Handbook

This is the datasheet for dsPIC30F6011A/6012A/6013A/6014A devices.

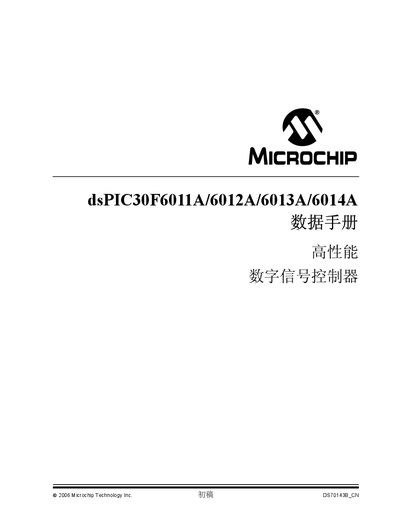

Microchip dsPIC30F6011A/6012A/6013A/6014A Digital Signal Controller Handbook - cover page
Brand
MICROCHIP
Category
Other device
Document type
Datasheet
Language
Chinese
Pages
238
File format
PDF
File size
2.2 MB
Published
17 December, 2011
Updated
30 September, 2023
MD5 checksum
8D190B2E429419F4EBD62D677CCFECE1

About this manual

This handbook summarizes the features and specifications of the dsPIC30F6011A, dsPIC30F6012A, dsPIC30F6013A, and dsPIC30F6014A digital signal controllers. It includes information on the RISC CPU core, Harvard architecture, instruction set, memory sizes, peripheral modules, and pin‑out diagrams.

The document also lists electrical characteristics, package options, and product identification codes, helping designers select the appropriate device for industrial and embedded applications. This manual is written in Chinese.

What's inside

  • CPU Architecture
  • Instruction Set
  • Memory Organization
  • Peripheral Features
  • Pinout Diagrams
  • Electrical Characteristics
  • Package Information
  • Product Identification System

Specifications

Maximum operating speed30 MIPS
Flash program memoryUp to 144 KB
Instruction memoryUp to 48 K instruction words
Data RAMUp to 8 KB
EEPROMUp to 4 KB
ADC conversion rate200 ksps
Interrupt sourcesUp to 41

Frequently asked questions

What is the maximum operating speed of the dsPIC30F controllers?

The devices can run at up to 30 MIPS.

How much flash program memory is available?

Each controller provides up to 144 KB of on‑chip flash program memory.

How many interrupt sources does the device support?

The dsPIC30F series supports up to 41 interrupt sources.

What is the ADC conversion speed?

The integrated 12‑bit ADC can convert at up to 200 ksps.
