MAX2055EUP is a digitally controlled variable gain differential analog-to-digital converter (ADC) driver/amplifier (DVGA) manufactured by Maxim

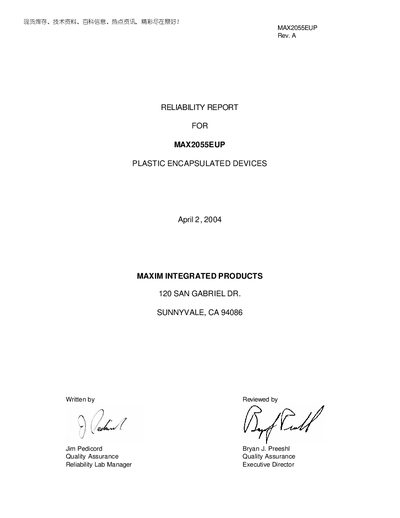

This reliability report for the Maxim MAX2055EUP plastic‑encapsulated device provides a complete description of the product, its packaging, die information, and manufacturing processes. It also outlines Maxim's quality‑assurance procedures, outgoing inspection levels, and sampling plans used to ensure the device meets the company's stringent reliability requirements.
Key technical data include a 28‑Pin TSSOP package, operating temperature range of –40 °C to +85 °C, 23 dB attenuation range with ±0.2 dB accuracy, and a continuous power dissipation rating of 2100 mW. The report presents accelerated life‑test results, moisture‑resistance testing, and ESD/latch‑up performance, demonstrating the device’s robustness for high‑performance ADC driver applications.
| Package Type | 28‑Pin TSSOP |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
| Attenuation Range | 23 dB |
| Attenuation Accuracy | ±0.2 dB |
| Continuous Power Dissipation | 2100 mW |
| Storage Temperature Range | -65 °C to +165 °C |
The device operates from –40 °C to +85 °C.
It offers a 23 dB attenuation range with an accuracy of ±0.2 dB.
The MAX2055EUP is supplied in a 28‑Pin TSSOP package.
