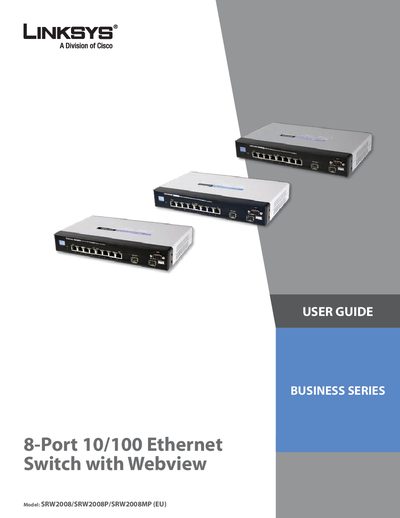

Linksys SRW2008/SRW2008P/SRW2008MP 8-Port 10/100 Ethernet Switch with Webview User Guide
The SRW2008, SRW2008P, and SRW2008MP are 8‑port 10/100/1000 Ethernet switches with WebView management, offering PoE options, mini‑GBIC uplink ports, and extensive QoS and security features. The guide explains the hardware layout, LED indicators, and port functions for each model.
The manual covers installation methods, console and web‑based configuration, VLAN and link aggregation setup, QoS, security (802.1X, RADIUS, ACLs), and detailed specifications. It also includes troubleshooting, firmware upgrade procedures, and regulatory information.
Linksys SRW2008 specifications
| Number of Ethernet ports | 8 RJ‑45 ports (auto‑sensing) + 2 shared SFP ports |
|---|---|
| Switching capacity | 16 Gigabits non‑blocking |
| Forwarding rate | 11.9 Mpps |
| MAC address table size | 8 K entries |
| Maximum VLANs | 256 |
| PoE power (SRW2008MP) | Up to 15.4 W per port, 8 ports simultaneously |
| Physical dimensions | 279.4 mm × 44.45 mm × 170 mm |
Source: Linksys SRW2008/SRW2008P/SRW2008MP 8-Port 10/100 Ethernet Switch with Webview User Guide
All Linksys SRW2008 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many Ethernet ports does the SRW2008 series have?
The switch provides eight RJ‑45 Ethernet ports and two shared SFP (mini‑GBIC) ports for fiber or copper uplinks.
From: Linksys SRW2008/SRW2008P/SRW2008MP 8-Port 10/100 Ethernet Switch with Webview User Guide
What PoE power can the SRW2008MP deliver?
The SRW2008MP can supply up to 15.4 W per PoE port, allowing all eight ports to deliver power simultaneously.
From: Linksys SRW2008/SRW2008P/SRW2008MP 8-Port 10/100 Ethernet Switch with Webview User Guide
How many Ethernet ports does the SRW2008 switch have?
The SRW2008 switch provides eight auto‑sensing RJ‑45 ports that support 10/100/1000 Mbps speeds.
From: Linksys SRW2008 Series 8-Port 10/100/1000 Ethernet Switch with WebView User Guide
What PoE power can the SRW2008MP model deliver?
The SRW2008MP can supply up to 15.4 W per PoE port on all eight ports at the same time.
From: Linksys SRW2008 Series 8-Port 10/100/1000 Ethernet Switch with WebView User Guide
