Key facts
- Brand
- Linksys
- Model
- WRT310N
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-08
Start here

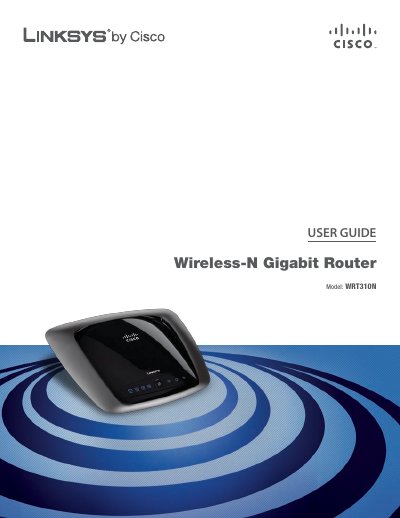

Linksys WRT310N Wireless-N Gigabit Router User Guide
This guide introduces the Linksys WRT310N Wireless‑N Gigabit Router, describing its hardware features, LED indicators, and mounting options. It explains how to install the router, reset it, and connect it to the Internet.
The manual covers wireless security best practices, advanced configuration (including DHCP, PPPoE, VPN passthrough, and QoS), application settings, administration tools, status monitoring, troubleshooting, and a full specification sheet.
Linksys WRT310N specifications
| Model | WRT310N |
|---|---|
| Standards | 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.3ab |
| Ports | Ethernet (1‑4), Power, Internet |
| Number of Antennas | 3 |
| RF Power (EIRP) | 17 dBm |
| Antenna Gain | Main 1.5 dBi, Third 2.2 dBi |
| Power Supply | 12 V |
| Dimensions | 7.95" x 6.3" x 1.34" (202 mm x 160 mm x 34 mm) |
| Weight | 13.40 oz (0.38 kg) |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Certifications | FCC, CE, IC‑03, Wi‑Fi |
Source: Linksys WRT310N Wireless-N Gigabit Router User Guide
All Linksys WRT310N documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I reset the router to factory defaults?
Press and hold the Reset button for about five seconds, or use Administration > Factory Defaults in the web utility.
What is the default IP address to access the router’s web‑based utility?
Enter 192.168.1.1 in a web browser’s address bar.
What is the default IP address to access the router’s web‑based utility?
Enter 192.168.1.1 in a web browser’s address field.
What are the default login credentials for the first time you open the utility?
Leave the username blank and use the password “admin”.
