IXGH 24N60A is an IGBT produced by IXYS. Its features are high frequency, high current, easy to install, mainly used in AC motor speed control, DC servo and robot drive, DC chopper, uninterruptible power supply (UPS), switch-mode and resonant-mode power supply.

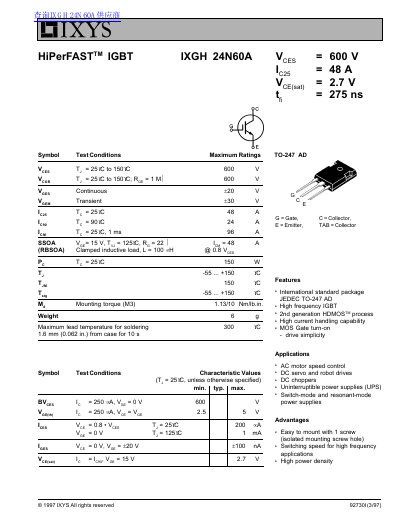

This document is a technical datasheet for the IXYS IXGH 24N60A, a High Frequency IGBT utilizing the 2nd generation HDMOS™ process. The device operates with a maximum collector-emitter voltage of 600V and supports continuous currents up to 48A at 25°C.
| Collector-Emitter Voltage (Vces) | 600 V |
|---|---|
| Continuous Collector Current (Ic) | 48 A |
| Operating Temperature Range | -55 ... +150 °C |
| Thermal Resistance Junction-to-Case (RthJC) | 0.83 K/W |
