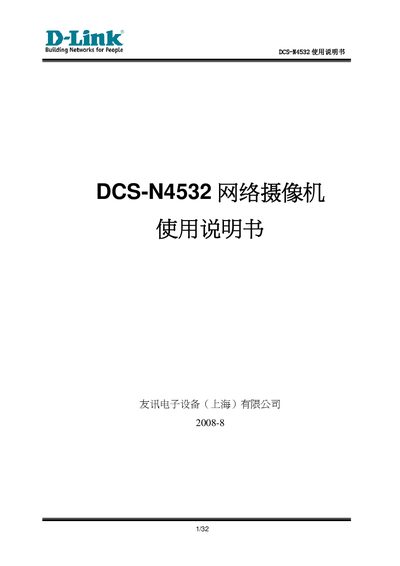

D-Link DCS-N4532 IP Camera User Manual

DCS-N4532 network camera user manual, introduces the installation, operation, and settings of the product.

Brand: D-Link
Category: Other
Document type: User Manual
Language: Chinese
Pages: 32
File format: PDF
File size: 1.8 MB
Published: 13 March, 2012
Updated: 30 September, 2023
Model: N4532
MD5 checksum: BD757843AC53E1ABBFDC2B1962BDBE2A
PDF: D-Link DCS-N4532 IP Camera User Manual PDF

About this manual

This manual covers the hardware overview, installation steps, and configuration of the DCS‑N4532 network camera. It explains how to connect the device, set up IP parameters, enable PoE power, and configure video formats such as MPEG‑4 and MJPEG.

Additional sections describe alarm input/output wiring, SD‑card storage options, and detailed specifications of the camera’s sensor, lens, CPU, and power requirements. The document also includes troubleshooting tips and default login information for web access. This manual is written in Chinese.

What's inside

Introduction
Hardware Overview
Network Settings
Power over Ethernet (PoE)
SD Card Storage
Alarm Input/Output
Installation Guide
Specifications

Specifications

Resolution	540 TV Lines
Image Sensor	1/4" CMOS
Lens	3.7‑12mm vari‑focal, F1.6
CPU	ARM9, 32‑bit RISC
Memory (SDRAM)	64 MB
Flash	8 MB
Relay Output	COM & N.O. contacts
Power Supply	DC 12 V, 490 mA

Frequently asked questions

What type of storage cards can be used with the camera?

The camera works with SD cards ranging from 128 MB up to 4 GB, such as SanDisk 4G 80X.

How many alarm inputs and outputs are available?

There is one alarm input and a relay output with COM and N.O. contacts.
