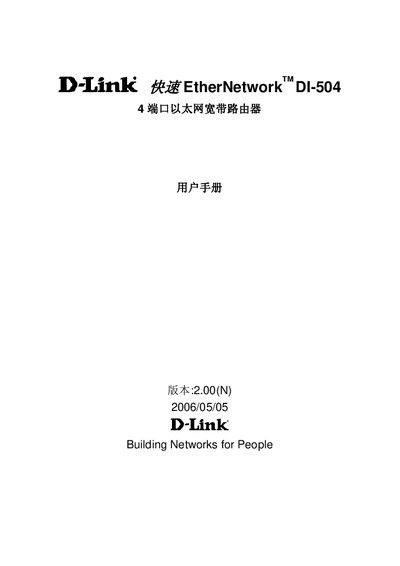

This document describes the features and advantages of the Quick EtherNetwork TM DI-504 4-port Ethernet broadband router, as well as technical introductions, packaging contents, hardware descriptions, resetting, and preparations.
This manual guides users through installing and configuring the D-Link DI-504 broadband router, covering basic network setup, DHCP, VPN pass‑through, firewall, and advanced features such as virtual servers and DMZ.
It also includes hardware descriptions, LED indicators, environmental requirements, and troubleshooting tips to help maintain reliable network performance. This manual is written in Chinese.
| Ethernet standard | IEEE 802.3 10Base‑T |
|---|---|
| Fast Ethernet standard | IEEE 802.3u 100Base‑TX |
| VPN pass‑through | PPTP, IPSec |
| Web management browsers | IE6+, Netscape 7+ or Java‑enabled browsers |
| Media access control | CSMA/CD |
| Power LED | Green when powered |
| WAN LED | Green when link is up |
| LAN Link LEDs | Green when active |
| Power supply | AC 9 V, 1.0 A |
| Weight | 0.47 lb (213 g) |
Press the reset button with a pin for 5 seconds while the device is powered on.
It can share a broadband cable or DSL modem connection.
