Analog Devices AD8421 Manuals

ManualLib has 3 documents for the Analog Devices AD8421 (Other Electronics): 3 datasheets. Every file can be read online or downloaded as a PDF for free.

Datasheet 3

Key facts

Model
AD8421
Industry
Electronics
Documents
3
Languages
ZH
Last added
2026-11-13

Start here

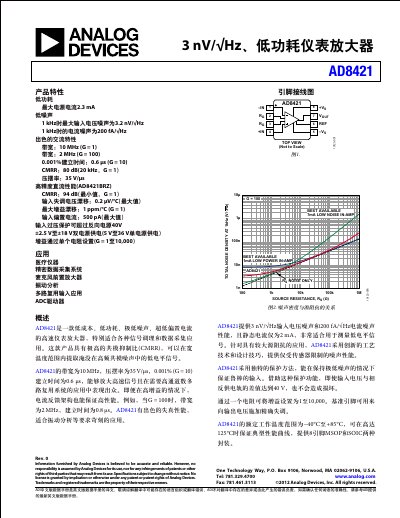

Analog Devices AD8421 Low Power Instrumentation Amplifier Data Sheet

Analog Devices AD8421 Low Power Instrumentation Amplifier Data Sheet

Datasheet 31 pages · 1 MB · ZH

The AD8421 is a low cost, low power, extremely low noise, ultralow bias current, high speed instrumentation amplifier. It features extremely high common-mode rejection ratio (CMRR), allowing it to extract low level signals in the presence of high frequency common-mode noise over a wide temperature range. The device offers a 10 MHz bandwidth, 35 V/µs slew rate, and 0.6 µs settling time to 0.001% (G = 10). This manual is written in Chinese.

Read online

Analog Devices AD8421 specifications

Input Voltage Noise3 nV/√Hz
Current Noise Spectral Density200 fA/√Hz
Small Signal Bandwidth10 MHz
Slew Rate35 V/µs
Quiescent Current2 mA
Gain Range1 to 10,000
Input Impedance Differential30 GΩ

Source: Analog Devices AD8421 Low Power Instrumentation Amplifier Data Sheet

All Analog Devices AD8421 documents by type

Questions answered in these manuals

What is the maximum supply current of the AD8421?

The maximum supply current is 2.3 mA.

From: Analog Devices AD8421 Low Power Instrumentation Amplifier Data Sheet

What is the bandwidth of the AD8421 at a gain of 1?

The bandwidth is 10 MHz at a gain of 1.

From: Analog Devices AD8421 Low Power Instrumentation Amplifier Data Sheet

What gain range does the AD8421 support?

The gain can be set from 1 to 10 000 using a single external resistor.

From: Analog Devices AD8421 Instrumentation Amplifier Datasheet

What are the absolute maximum supply voltages?

The absolute maximum supply voltage is ±18 V.

From: Analog Devices AD8421 Instrumentation Amplifier Datasheet

What is the maximum supply current of the AD8421?

The maximum supply current is 2.3 mA.

From: Analog Devices AD8421 Low Power Instrumentation Amplifier Datasheet

How is the gain of the AD8421 set?

The gain is set with a single resistor, ranging from 1 to 10,000.

From: Analog Devices AD8421 Low Power Instrumentation Amplifier Datasheet
