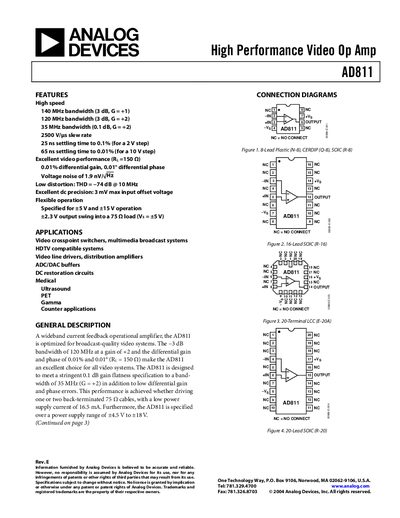

Analog Devices AD811 High Performance Video Op Amp Datasheet
The AD811 is a wide‑band current‑feedback operational amplifier optimized for broadcast‑quality video systems. It offers a -3 dB bandwidth of 120 MHz at a gain of +2, low differential gain and phase errors, and excellent video performance with a 150 Ω load.
The document provides detailed specifications, absolute maximum ratings, typical performance curves, mechanical dimensions, and ordering information for the various AD811 package options.
Analog Devices AD811 specifications
| Slew rate | 2500 V/µs |
|---|---|
| Differential gain error | 0.01 % |
| Differential phase error | 0.01° |
| THD @ 10 MHz | -74 dBc |
| Input voltage noise | 1.9 nV/√Hz |
| Supply voltage range | ±4.5 V to ±18 V |
Source: Analog Devices AD811 High Performance Video Op Amp Datasheet
All Analog Devices AD811 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum slew rate of the AD811?
The device can achieve a slew rate of up to 2500 V/µs.
From: Analog Devices AD811 High Performance Video Op Amp Datasheet
What supply voltage range is recommended for the AD811?
The AD811 is specified for supply voltages from ±4.5 V to ±18 V.
From: Analog Devices AD811 High Performance Video Op Amp Datasheet
What is the maximum slew rate of the AD811?
The AD811 can achieve a slew rate of 2500 V/µs.
From: Analog Devices AD811 High‑Performance Video Op Amp Datasheet
What supply voltage range does the AD811 support?
It operates from +4.5 V up to +18 V, with typical operation at +5 V or +15 V.
From: Analog Devices AD811 High‑Performance Video Op Amp Datasheet
